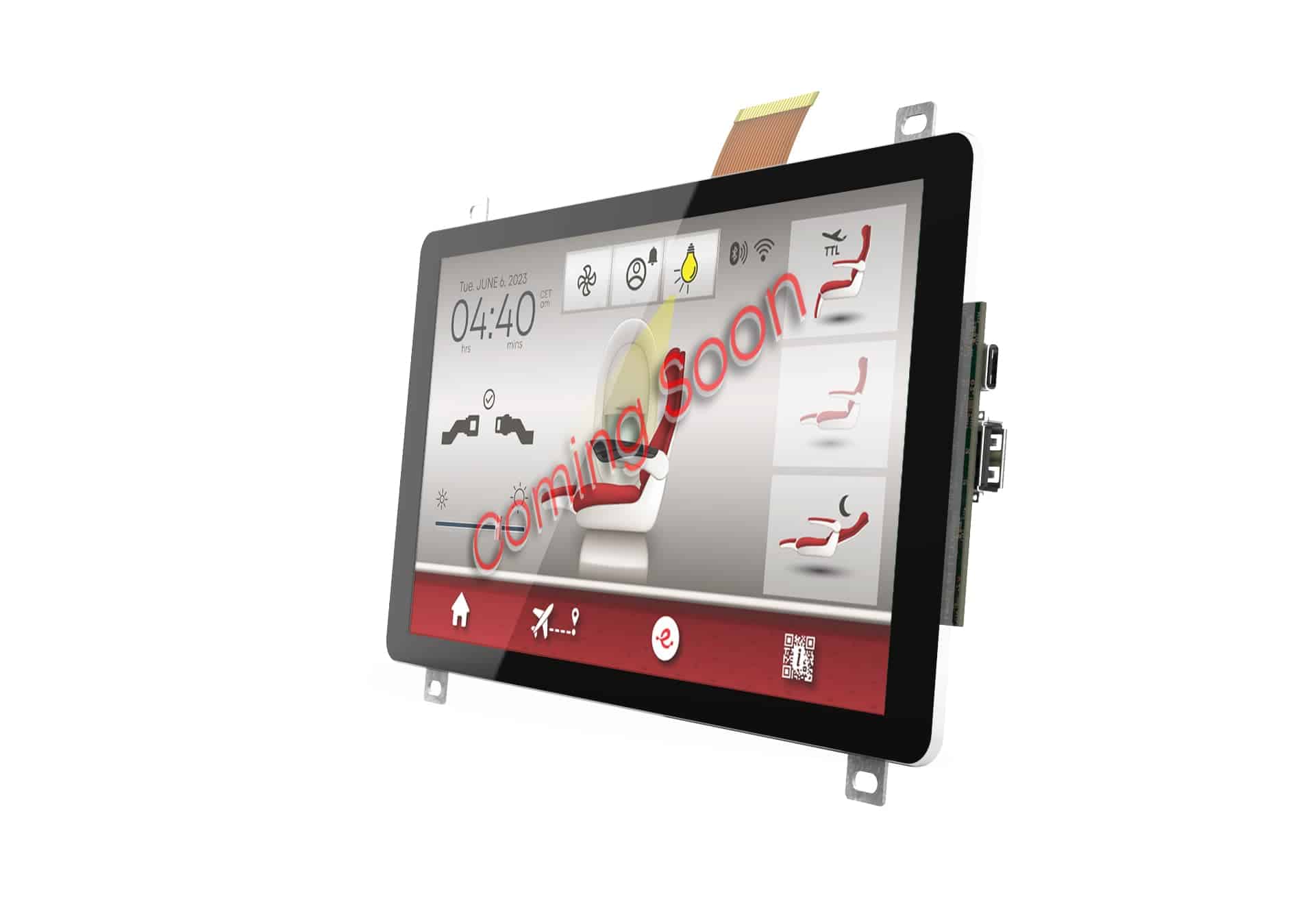

Available currently in 4.3 ″ and 7″, the SIMx21 HMI module families have many LCD options to meet your embedded HMI needs, including sunlight-readable, extended temperature range, cap/resistive/no-touch, and more.

Aside from LCD size and capability options, the SIMx21 family has several different feature options (“variants”) you can choose from based on your feature and cost needs:

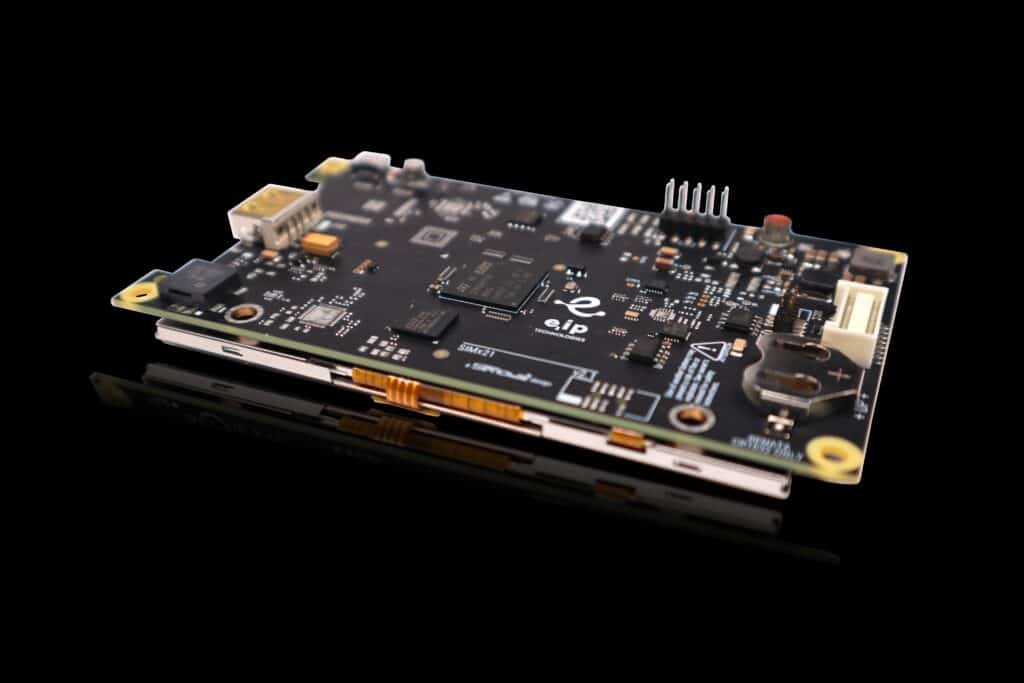

Processor and Memory

• STM32H750XB MCU with 480MHz Arm Cortex-M7 MCU and 1MB integrated RAM
• 4-16MB SPI NOR Boot Flash for boot, program, non-volatile data, and file system storage
• 128MB QSPI NAND Flash for program, non-volatile data, and file system storage
• 8 to 64MB SDRAM

Integrated graphics/touch and audio I/O:

• Resistive, capacitive, and non-touch Touch Panel options
• Option for external resistive touch panel via RTP Riser Cards.
• Integrated Piezo Sounder or Electro-Mechanical Sounder for alarms
• Integrated 3W External Speaker Audio output
• I2S output for external DAC/Codec

Numerous communications ports

• USB 2.0 Full-Speed Device Port with USB Micro B Device Connector
• USB 2.0 Full-Speed Embedded Host Port with USB A Host Connector
• RS422/485 Port with optional termination
• 3V UART Port with transmit control
• CAN Port with optional termination
• WiFi module (external antenna required)

Simple in-chassis connectivity

• 16-Pin Wire-To-Board Connector (RS4xx, CAN, UART, Power, Reset, USB Device)
• 54mm (0.1”) dual row 10/16-Pin Header
  • 10-pin variants: UART, Power, Reset, CAN TX/RX, RTP4, I2S
  • 16 pin variants add USB Device, USB Host

Wide Operating Range

• Optional 5VDC Power Input or 0-35VDC Power Input
• -40 to +85C operating temperature range components (further limited by LCD option)

Coming Soon

• Support for other GUI Development Environments including:
  • ST TouchGFX
  • Crank Storyboard
  • Qt for MCUs

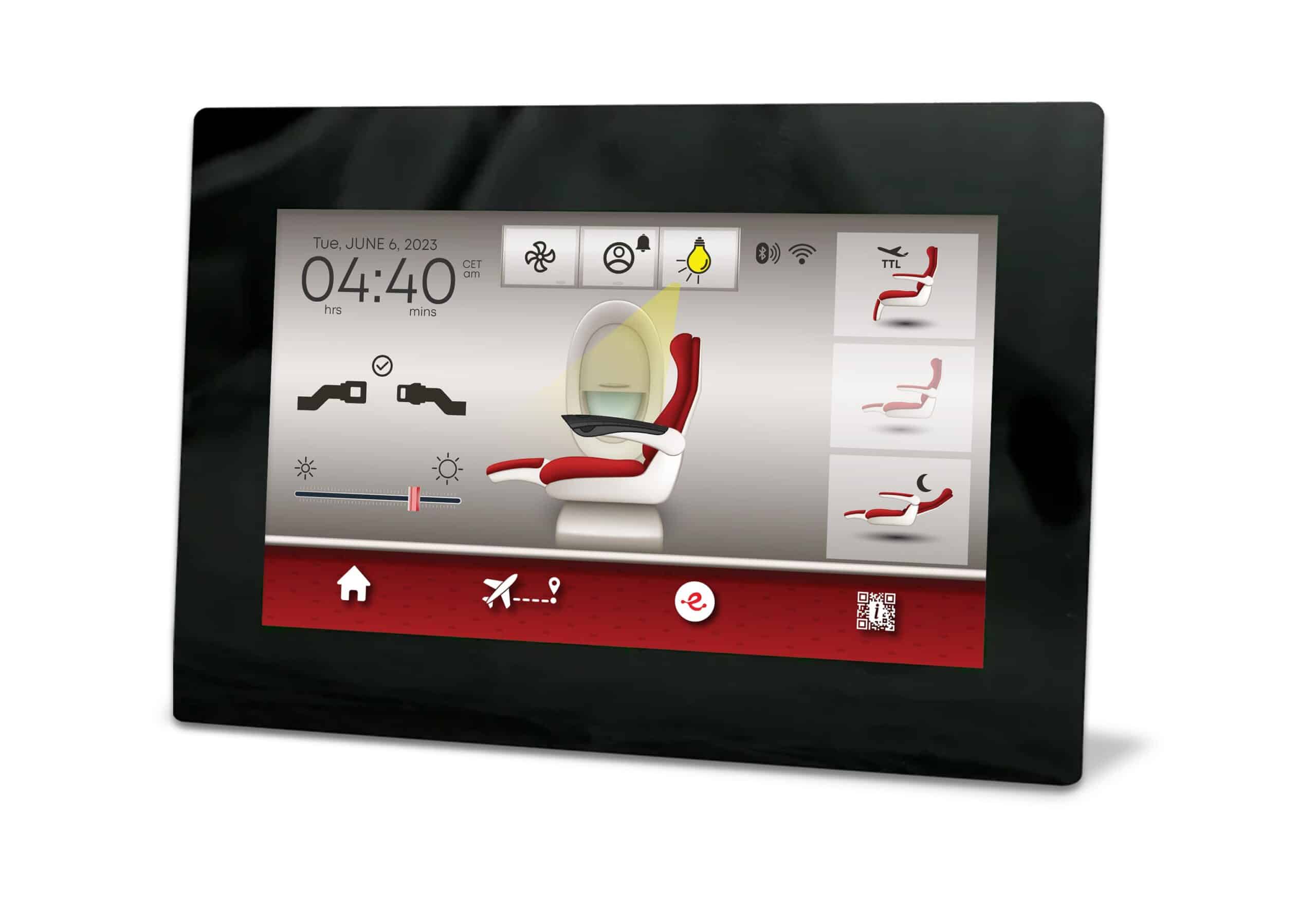

SIM221 4.3″ HMI Modules

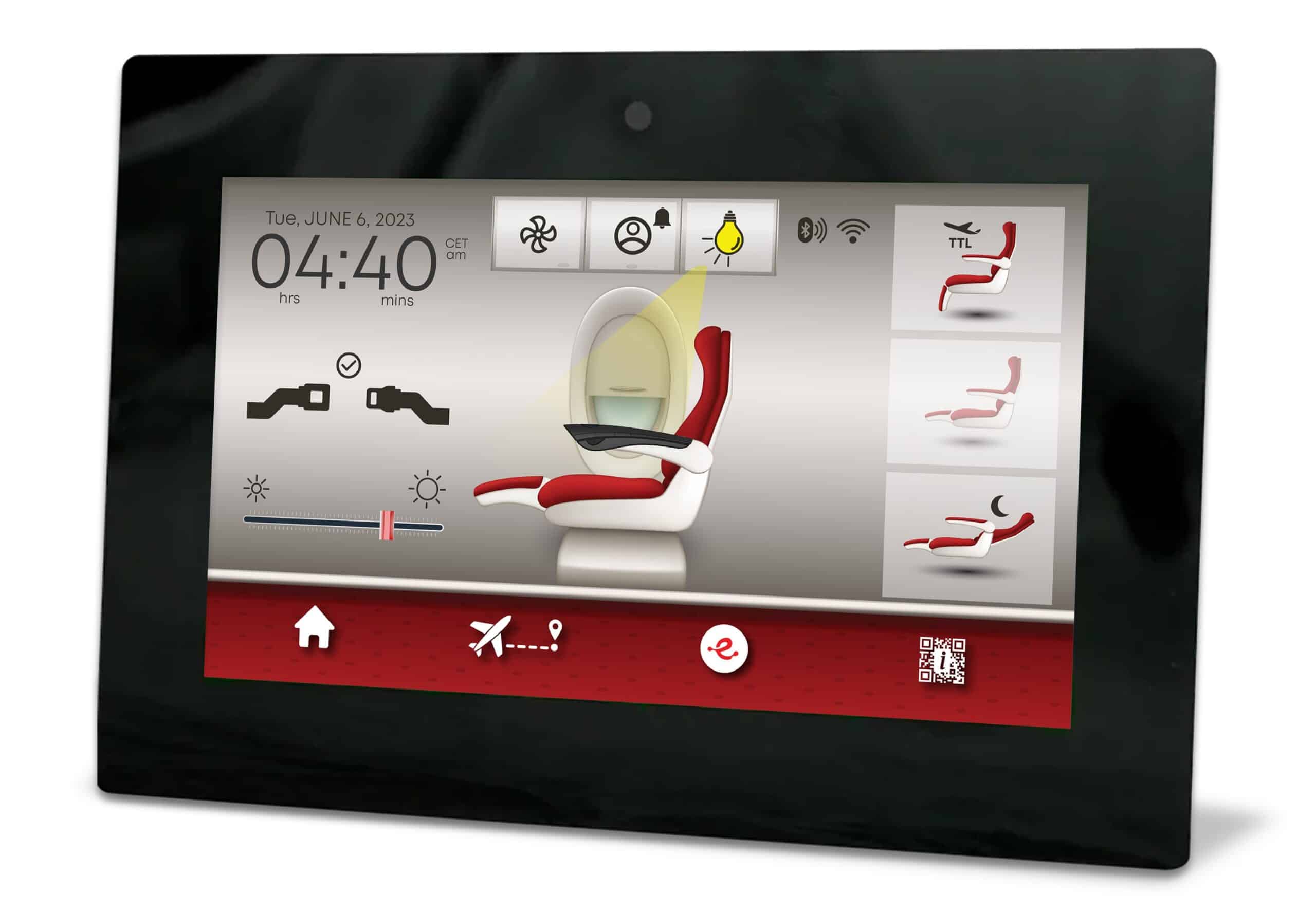

SIM521 7″ HMI Modules
