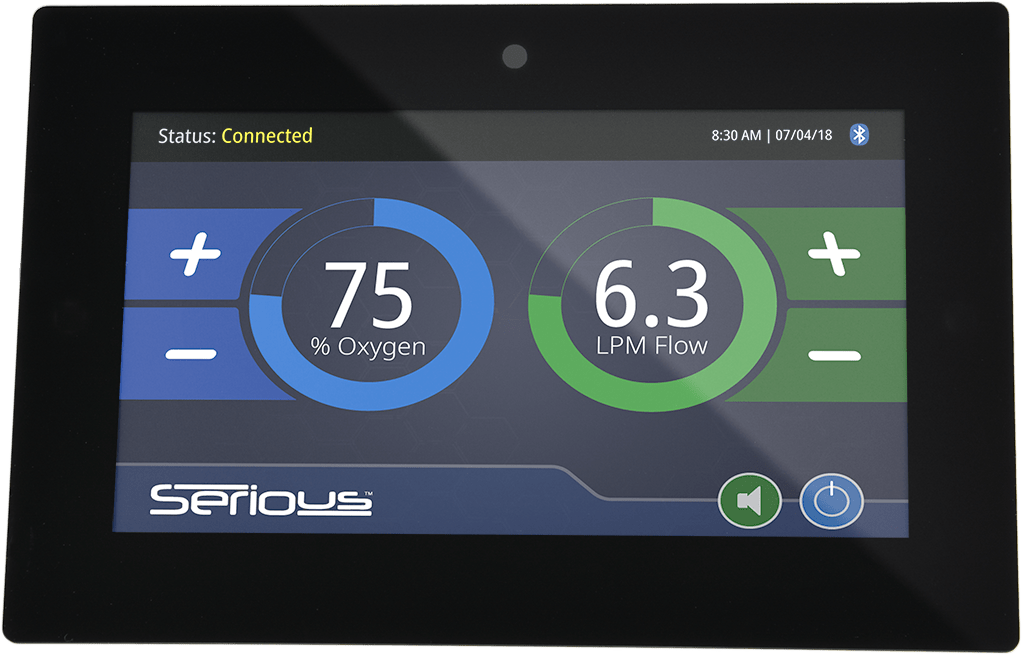

SIM862 10.1″ HMI
SIMx62 Technical Product Brief (TPB)
SIM862 is in limited production; full production is scheduled for Q3 2019.
SIM862 is an Extended Lifetime Product and recommended for new designs
The SIM862 features a big, bold 10.1″ high resolution wide-screen 1280×800 or 1024×600 color LCD powered by the Renesas RZ/G1E MPU with 1GHz Dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM862 delivers a large array of options for front panel applications with industrial, commercial and medical applications.
Featuring built-in RS485/UART and high-speed USB connectivity, SIMx62 family members are easily integrated into existing system designs. The 30-pin expansion connector provides further expandability to custom daughter-cards or off-the-shelf Serious Communications/Control Modules for extensive connectivity (including WiFi, Bluetooth, Ethernet, RSxxx, CAN, and more) as well as powerful system control.
FEATURES & VARIANTS
Processor and Memory
- Renesas RZ/G1E Dual 1GHz ARM Cortex A7 MCU
- 256MB DDR1333 DDR3 DRAM
- 4GB e.MMC storage for program, non-volatile data, and files system storage
- μSDCard socket for (user supplied) memory cards for file system expansion and firmware/GUI updates
Integrated graphics/touch and audio I/O:
- Integrated LCD with optional touch controller and ambient light sensor for high brightness LCD options
- Integrated audio codec/amplifier with line/headphone, headphone detect, and 3W speaker outputs
- External codec/amplifier support
Numerous communications ports
- USB 2.0 high speed 480mbps host port A connector
- USB 2.0 high speed 480mbps device port Micro B connector
- RS422/485 port with selectable duplex and termination
- 3.3V UART with transmit control (separate from RS485 port)
Simple in-chassis connectivity
- Direct Dock to Generation 5 Serious Comms/Control Modules (SCMs, e.g. SCM318)
- 16-pin JST ZPD series wire-to-board connector (RS485/UART, Power, RESET#)
- 6-pin industrial 3.5mm pluggable connector (RS485, Power)
- 4-pin audio headphone/line out connector and 3-pin speaker connector
Wide Operating Range
- 10.8-35VDC wide range power supply input
- -40 to +85C operating temperature range components (further limited by LCD option)256
FEATURE/VARIANT | A01 | A05 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LCD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size (inches) | 5″ (SIM362), 7″ (SIM562), 10.1″ (SIM862) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Options | Capacitive, Resistive, None | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vin | 10.8-35.0 VDC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temp | -40 to +85C (further limited by LCD) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCU & Storage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Family | Renesas RZ/G1E | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Core | 1GHz Dual Cortex A7 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
e.MMC Flash (MB) | 4096 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Type | DDR3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Size (MB) | 256 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
µSDCard Socket | Y | N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripherals | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Backed RTCC | Y | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ambient Light Sensor | See LCD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | I2S Line Out 3W Amp | I2S | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectivity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Host Port/Speed (Mbps) | 480 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Host A Connector | Y | N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Port/Speed (Mbps) | 480 | 480 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Device µB Connector | Y | Y | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
UART | 1 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS422/485 Transceiver | 1 | 0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2×15 Board-To-Board 1,27mm” | Y | Y | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
16-pin JST Wire Harness | Y | N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6-pin Industrial 3,5mm | Y | N |
LCD OPTIONS
See LCD Options for definitions and codes. Additional options may be available; contact your local Serious representative for details.
Capacitive Touch Options
LCD Option | C85ALSFF | C43ALSFE | C33ALSFA |
Size (inches) | 10.1 | 10.1 | 10.1 |
Pixels (w x h) | 1280×800 | 1280×800 | 1280×800 |
Touch | Capacitive | Capacitive | Capacitive |
Cover Glass | 3mm+ w/ASF | 3mm+ | 1mm+ |
Brightness (typ NITs) | 800+ | 400+ | 300+ |
Backlight Life (typ hrs) | 50,000 | 30,000 | 30,000 |
Viewing Technology | IPS | IPS | IPS |
Color Depth (bits) | 24 | 24 | 24 |
Operating Temp | -20/+70C | -20/+70C | -20/+70C |
Ambient Sensor | ● | ● |
Resistive Touch Options
LCD Option | R33ALSFA |
Size (inches) | 10.1 |
Pixels (w x h) | 1280×800 |
Touch | Resistive |
Cover Glass | 1mm+ |
Brightness (typ NITs) | 300+ |
Backlight Life (typ hrs) | 30,000 |
Viewing Technology | IPS |
Color Depth (bits) | 24 |
Operating Temp | -20/+70C |
Ambient Sensor |
Non-Touch Options
LCD Option | N43ALSFN |
Size (inches) | 10.1 |
Pixels (w x h) | 1280×800 |
Touch | None |
Cover Glass | None |
Brightness (typ NITs) | 400+ |
Backlight Life (typ hrs) | 30,000 |
Viewing Technology | IPS |
Color Depth (bits) | 24 |
Operating Temp | -20/+70C |
Ambient Sensor |
DEVELOPMENT TOOLS AND SOFTWARE
- Pixel accurate page layout
- Built-in media support: jpg, png, bmp, tif, ttf, wav, and more
- Windows 10 based
- Licensed with every SIM
- Runs GUIs generated by SHIPTide
- Handles graphics, touch, communications, events, and more
SIMx52 and SIMx62 (“Generation 5”) HMI modules are supported by SHIP v5.2.
Learn More about the Serious Human Interface™ Platform (SHIP)
DEVELOPMENT KITS
The SIMx52 and SIMx62 Development Kits
SIMx52 and SIMx62 HMI modules are supported by SIM Dev Kit Accessory (SIMDKA) packages. Just purchase separately the individual HMI module of your choice, and add the appropriate DKA as a build-your-own dev kit.
SIMx52/x52 Dev Kit Accessories
