Getting Started with Gen 3 & 4 HMI Modules

1 Pick your Module & Get a Dev Kit

Generation 3 & 4 modules are mature products and not recommended for new projects. We recommend starting with Generation 5 HMI Modules, for example, the SIMx52 or SIMx62 families for new designs.

If you’ve purchased a development kit for a Generation 3 or 4 HMI module, for example, the SIM115, SIM231, or SIM543, and want to get started, you’ve come to the right place.

2 Got your Dev Kit?    Power it Up!

For smaller SIMs, such as the SIM115 and SIM231, you can power the whole module from the USB connector.

For larger SIMs, such as the SIM543, the dev kit includes a 110/220VAC to 5V power adapter, a barrel jack adapter, an example JST16 wire harness, and a handy connector wiring card. Connecting all these pieces together will power the unit.

Be sure to connect the power + and – wires correctly according to the wire card or you will damage your unit. Consult the technical reference manual if you have any doubt on the correct connection of the power supply to the unit.

Many SIMs purchased in single unit (-01) packages have a built-in demo installed. If you purchased a production multi-pack (-05 or -10), there may be a (fairly unimpressive!) manufacturing GUI installed.  Either way, once the unit is powered, the on-board firmware will execute and any installed GUI should start running and displaying info on the LCD screen.

If there’s a demo installed on the SIM, go ahead and explore it!  It was developed using the Serious Human Interface™ Platform (SHIP) rapid GUI development system, including the SHIPTide GUI Development IDE and is less than a few hundred lines of code (really!).

3 Download SHIPtide and Connect

In order to build a GUI and uploaded it to your module, you’ll first need to download the no-cost tools from Serious. SHIPTide is the IDE where you develop your GUIs for downloading into your SIM. SHIPTide also has built-in communications and firmware upgrade capabilities for managing your SIM’s configuration.

Download and Install SHIPTide

For the Gen3 and 4 HMI modules, use SHIPTide 5.1 or later, downloadable from the www.mySerious.com portal.

Note: SHIPTide is only supported on Windows 10 64-bit systems.

Download SHIPTide 5.2 and install it on your PC. This download/install not only installs the SHIPTide tool, but also Windows USB custom drivers as well as the SHIPHarborMaster application. SHIPHarborMaster is a separate background app that sits in your Windows toolbar and monitors connect/disconnect events from Serious modules (both SIMs and SCMs) as well as brokers the conversation between the USB subsystem and higher level applications such as SHIPTide.

Run SHIPTide and Connect

You can run SHIPHarborMaster directly – SHIPTide does not need to be running to connect a PC to a SIM – however the easiest way to start is by running SHIPTide which auto-launches the SHIPHarborMaster background task. With the module powered and connected via USB, the drivers will recognize the module and give a Windows 10 notification of the connected unit as shown here.
Within SHIPTide you will also see all connected devices in the “Devices:” pulldown:

Update the SIM’s Firmware

You can easily, within SHIPTide, see what firmware versions are installed on the unit and the Serious Serial Number of the unit: click on Tools>Firmware Update to bring up the Firmware Update panel.

The panel shows the installed firmware versions and the serial number of the unit. It also, if you are connected to the internet, enables you to browse active, retired, and experimental firmware bundles available from Serious. You can, directly from this panel, select, download, and install a new firmware bundle onto your SIM.

If this panel shows a newer firmware release is available for your SIM than currently installed, go ahead and update your SIM now: it will only take a moment. You’ll see the SIM reboot and firmware being installed, then an additional reboot.  SHIPTide will show the module disappear and reappear as the module reboots.  When complete, you can go back into the Firmware Update panel and see the new firmware revision(s) you installed.

Note there are three firmware objects in every SIM: two boot loaders and the SHIPEngine GUI management firmware.  You can learn more about the SHIPv5 boot system here.

3 Build & Run First GUI

We know you’re eager to get your own GUI started! Dive right in. Within SHIPTide, click the Project->New menu and choose your SIM: Now give it a project name and choose a simple starting template for your GUI: You’ll now see a very simple GUI in SHIPTide’s workspace. Go ahead! Let’s build this GUI and install it into your SIM! Click Project->Build & Export and SHIPTide will “compile” your project and and prompt you to upload it to the SIM:

4 What’s Next?

Now it’s time to dig deeper into SHIPTide and how to build that rich and modern GUI you’ve always wanted for your product.

Time for a little watching and learning:

Serious Documentation Zone

The Serious Documentation area has a wealth of information:

  • applications notes
  • example projects
  • training videos
  • reference manuals for SHIP concepts

mySerious.com Portal

The mySerious.com portal contains many downloads for your SIM, including:

  • Technical Reference Manual (TRM)
  • Mechanical Design Package (MDP), including STEP file models of your SIM
  • SHIPTide updates

Don’t Get Stuck!

Product Safety

Please follow general Product Safety practices to avoid any situation which could damage your SIM or create hazardous conditions. More detailed information specific to your product will be available in the Technical Reference Manual.

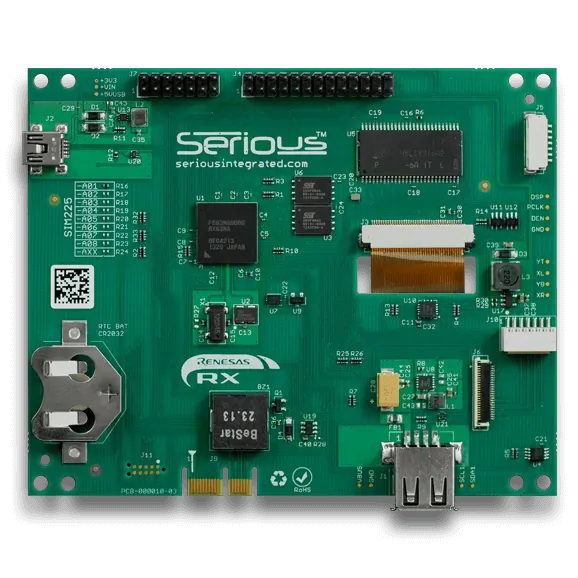

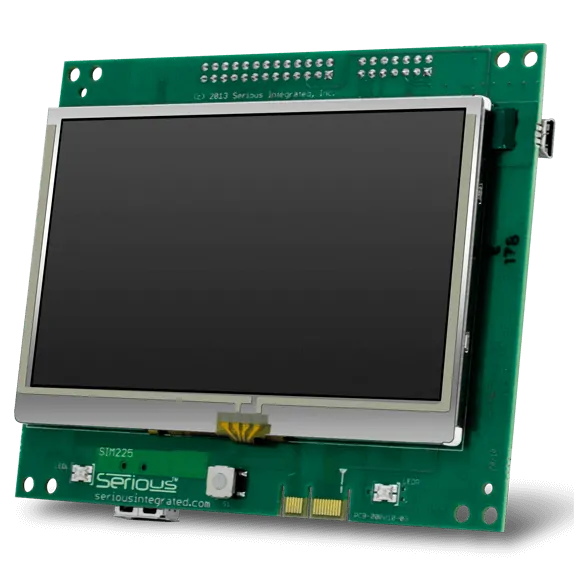

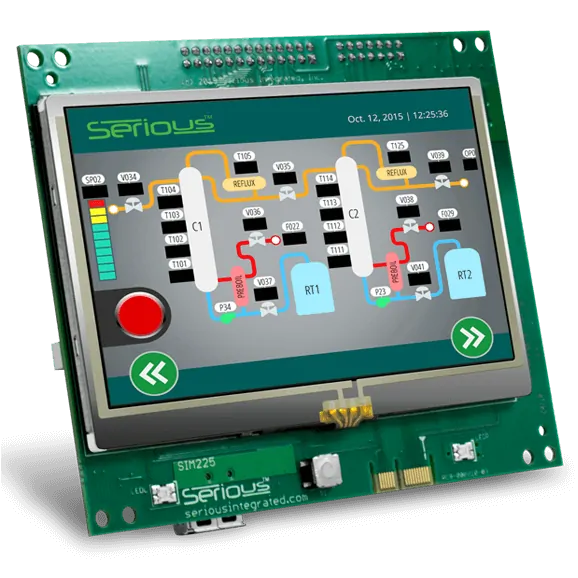

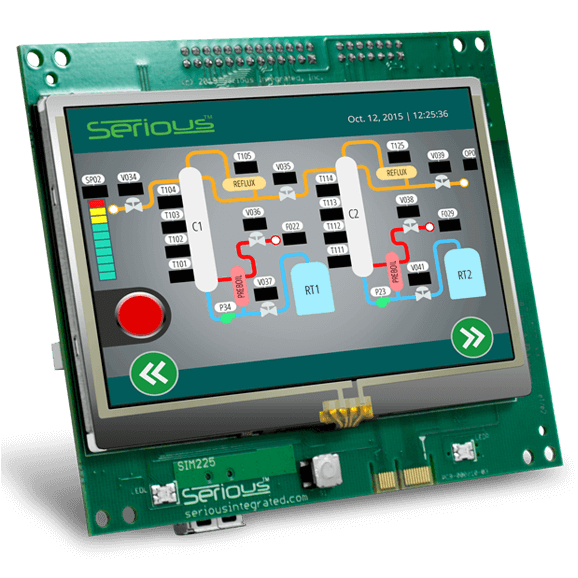

SIM225 4.3″ HMI

SIM225 4.3″ HMI


SIM225 is End of Life
 — see the SIM252 for new designs.

With a resistive touch 4.3” 480×272 16-bit color LCD powered by the Renesas RX63N MCU, the SIM225 was a breakthrough product using “direct drive” technology for cost-effective and modern HMI experiences. It is still supported by v5.1 of our proprietary SHIPEngine firmware and the SHIPTide development tools.

Standard high-speed UART and power connectivity are provided by Serious 7-pin connectors — perfect for simple attachment to existing systems. Some variants have 26 pin expansion connectors enabling easy custom daughter-card development for more complex connectivity.

Explore these options compared to the SIM243:
  • SIM152 for high performance, more cost-effective HMI in a very compact 3.5″ form factor
  • SIM252 for high performance, more cost-effective, modern product line
  • SIM352 for a larger, high resolution 5″ experience
  • SIM552 for a big 7″ LCD experience
  • SIM862 for higher performance, including video playback, with a big, bold 10.1″ LCD

FEATURES & VARIANTS

4.3” WQVGA 480×272 color TFT display
  • various touch options
100MHZ 32-bit Renesas RX63N/RX631 MCU
  • 128KB RAM, up to 2MB FLASH
  • Direct Drive LCD Connectivity
On Module Memory
  • 8 or 16MB SDRAM
  • 8MB or 16MB serial FLASH
  • 2Kbit EEPROM
Extensive I/O
  • 14-pin Renesas E1 JTAG Header
  • 26-pin 0.1″ I/O Header
  • USB 2.0 FS Embedded Host
  • USB 2.0 FS Device
  • PCB Edge Connector w/JTAG & USB Device
Wide Operating Range
  • -20 to 70°C operating temperature
  • 6 to 5.50 VDC Input Power
SIM243A01
Renesas Synergy S7G2 MCU
MCU FLASH/RAM (kB)3072/640
DRAM (MB)16
e.MMC (GB)2
Ambient Light SensingSee LCD Option
Front LEDRGB
Piezo Sounder
16-Pin Serial/Power Expansion
60-Pin SCM Expansion
USB2.0 HS Device Logic
USB2.0 FS Device Micro B Connector
USB2.0 FS Host with A Connector
RTCC w/Battery Backup

LCD OPTIONS

See LCD Options for definitions and codes. Additional options may be available; contact your local Serious representative for details.

Resistive Touch Options

LCD Option

R32AWL

Size (inches)

4.3

Pixels (w x h)

480×272

Touch

Resistive

Cover Glass

1mm+

Brightness (typ NITs)

300+

Backlight Life (typ hrs)

20,000

Viewing Technology

Landscape

Color Depth (bits)

16

Operating Temp

-20/+70C

Ambient Sensor


Non-Touch Options

LCD Option

N32AWL

Size (inches)

4.3

Pixels (w x h)

480×272

Touch

None

Cover Glass

None

Brightness (typ NITs)

300+

Backlight Life (typ hrs)

20,000

Viewing Technology

Landscape

Color Depth (bits)

16

Operating Temp

-20/+70C

Ambient Sensor



DEVELOPMENT TOOLS AND SOFTWARE

SHIPTide GUI Development IDE

  • Pixel accurate page layout
  • Built-in media support: jpg, png, bmp, tif, ttf, wav, and more
  • Windows 10 based

SHIPEngine Runtime GUI Engine

  • Licensed with every SIM
  • Runs GUIs generated by SHIPTide
  • Handles graphics, touch, communications, events, and more

Older HMI modules, including SIM115SIM225SIM231SIM243SIM535SIM543 are all supported by SHIP v5.1. For the extra features in SHIP v5.2 and onwards, choose a newer “Gen5” HMI Module, including the SIMx52 and SIMx62  families.

Learn More about the Serious Human Interface™ Platform (SHIP)





DEVELOPMENT KITS

This product is not recommended for new designs and development kits are no longer broadly available.

Contact your local Manufacturer’s Representative if you are an existing customer of this product and need an additional development kit for your team.

SHIPTide GUI Development IDE
  • Pixel accurate page layout
  • Built-in media support: jpg, png, bmp, tif, ttf, wav, and more
  • Windows tested
SHIPEngine Runtime GUI Engine
  • Licensed with every SIM
  • Runs GUIs generated by SHIPTide
  • Handles graphics, touch, communications, events, and more

Learn More

DEVELOPMENT RESOURCES

The Serious Documentation Zone has extensive SIM documentation, downloads, resources, training, and more.
