SIM152 3.5″ HMI
SIMx52 Technical Product Brief (TPB)
SIM152 is a future product; Contact Serious for details.
SIM152 will be an Extended Lifetime Product and recommended for new designs

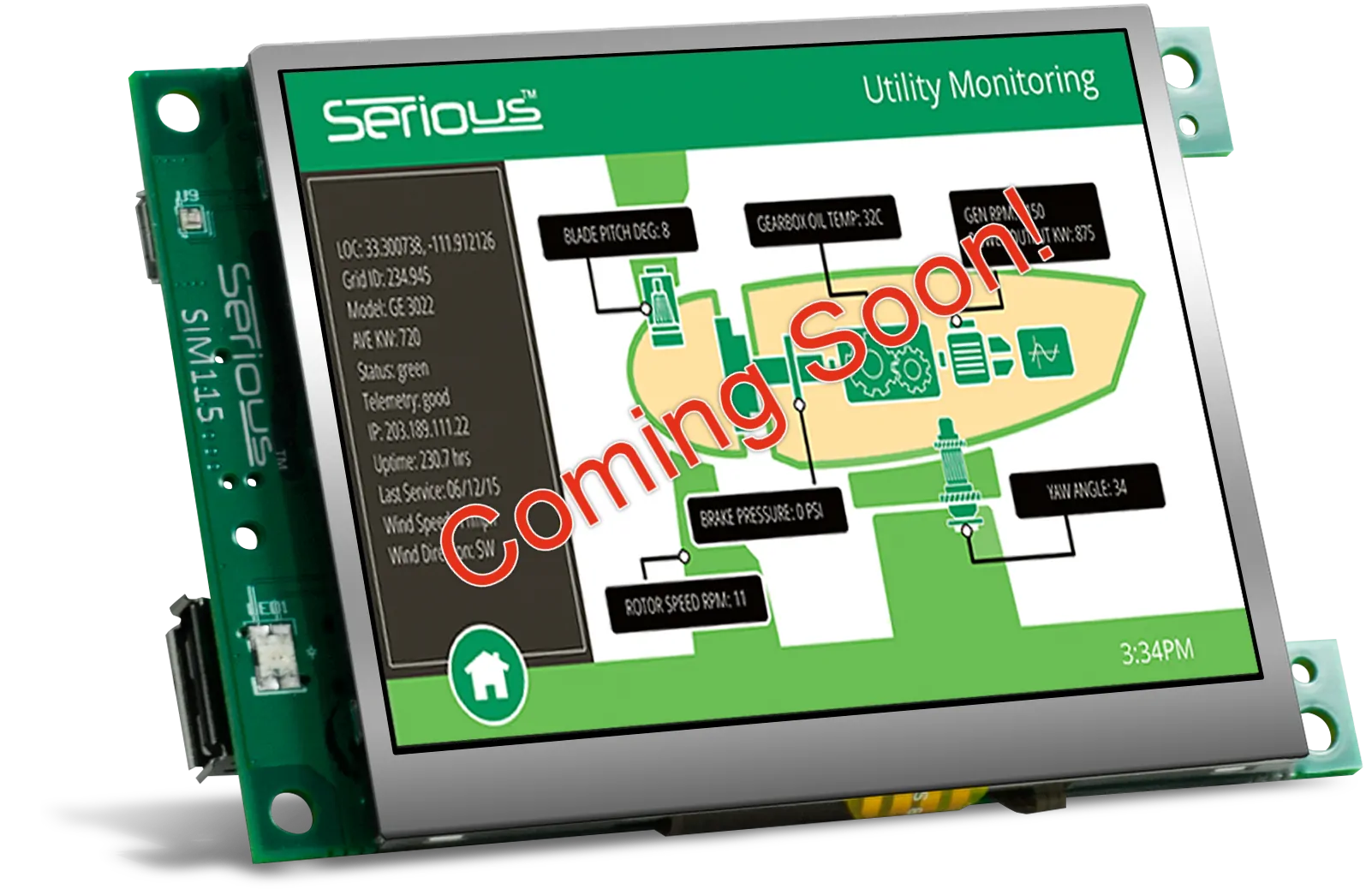

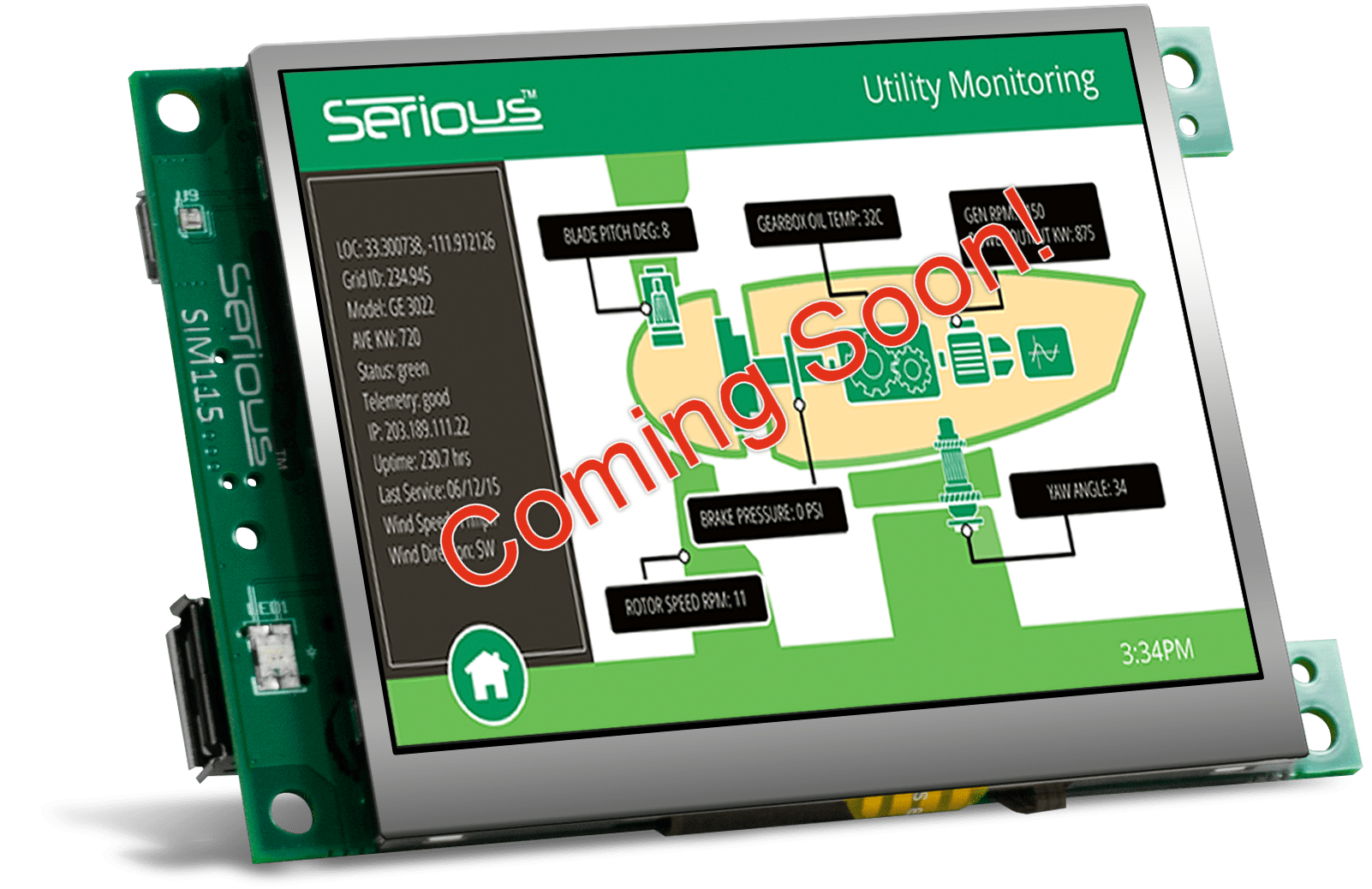

The SIM152 features a small 3.5″ 320×240 color LCD — perfect for highly space constrained designs. Powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core, and equipped with our proprietary SHIPEngine firmware, the SIM152 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package.
Featuring built-in RS485/UART and high-speed USB connectivity, SIMx52 family members are easily integrated into existing system designs. The 30-pin expansion connector provides further expandability to custom daughter-cards or off-the-shelf Serious Communications/Control Modules for extensive connectivity (including WiFi, Bluetooth, Ethernent, RSxxx, CAN, and more) as well as powerful system control.
Explore these options compared to the SIM152:
- SIM252for similar capabilities and pricing in a wide-format 4.3″ form factor
- SIM352for a larger, high resolution 5″ experience
- SIM552for similar capabilities in a larger 7″ form factor
- SIM562for a high performance 7″ experience with video playback
- SIM862for a high-performance 10.1″ experience with video playback
FEATURES & VARIANTS
Processor and Memory
- Renesas RZ/A1L 400MHz ARM Cortex A9 MCU
- 32MB SDRAM with 128MB QSPI NAND Flash storage for program, non-volatile data, and files system storage
- μSDCard socket for (user supplied) memory cards for file system expansion and firmware/GUI updates
Integrated graphics/touch and audio I/O:
- Integrated LCD with optional touch controller and ambient light sensor for high brightness LCD options
- Integrated audio 3W speaker codec/amplifier outputs and external codec/amplifier support
Numerous communications ports
- USB 2.0 high speed 480mbps host port A connector
- USB 2.0 high speed 480mbps device port Micro B connector
- RS422/485 port with selectable duplex and termination
- 3V UART with transmit control (separate from RS485 port)
Simple in-chassis connectivity
- Direct Dock to Generation 5 Serious Comms/Control Modules (SCMs, e.g. SCM318)
- 16-pin JST ZPD series wire-to-board connector (RS485/UART, Power, RESET#)
- 6-pin industrial 3.5mm pluggable connector (RS485, Power)
- 3-pin speaker connector
Wide Operating Range
- 8-35VDC wide range power supply input
- -40 to +85C operating temperature range components (further limited by LCD option)
FEATURE/VARIANT | A01 | A03 | A05 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LCD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size (inches) | 3.5″ (SIM152), 4.3 (SIM252), 5″ (SIM352), 7″ (SIM552) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Options | Capacitive, Resistive, None | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vin | 10.8-35.0 VDC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temp | -40 to +85C (further limited by LCD) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCU & Storage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Family | Renesas RZ/A1L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Core | 400MHz Cortex A9 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QSPI NAND Flash (MB) | 128 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Type | SDRAM | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Size (MB) | 32 | 32 | 16 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
µSDCard Socket | Y | Y | N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripherals | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Backed RTCC | Y | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ambient Light Sensor | See LCD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | I2S Line Out 3W Amp | I2S | I2S | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectivity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Host Port/Speed (Mbps) | 480 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Host A Connector | Y | N | N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Port/Speed (Mbps) | 480 | 480 | 480 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB Device µB Connector | Y | Y | Y | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
UART | 1 | 1 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS422/485 Transceiver | 1 | 1 | 0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2×15 Board-To-Board 1,27mm | Y | Y | Y | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
16-pin JST Wire Harness | Y | Y | N | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6-pin Industrial 3,5mm | Y | Y | N |
LCD OPTIONS
Capacitive Touch Options
For additional options, Contact Serious
Resistive Touch Options
For additional options, Contact Serious
LCD Option | R45ALLAA |
Size (inches) | 3.5 |
Pixels (w x h) | 320×240 |
Touch | Resistive |
Cover Glass | 1mm+ |
Brightness (typ NITs) | 400+ |
Backlight Life (typ hrs) | 50,000 |
Viewing Technology | Landscape |
Color Depth (bits) | 24 |
Operating Temp | -20/+70C |
Ambient Sensor |
Non-Touch Options
For additional options, Contact Serious
LCD Option | N55ALLAN |
Size (inches) | 3.5 |
Pixels (w x h) | 320×240 |
Touch | None |
Cover Glass | None |
Brightness (typ NITs) | 500+ |
Backlight Life (typ hrs) | 50,000 |
Viewing Technology | Landscape |
Color Depth (bits) | 24 |
Operating Temp | -20/+70C |
Ambient Sensor |

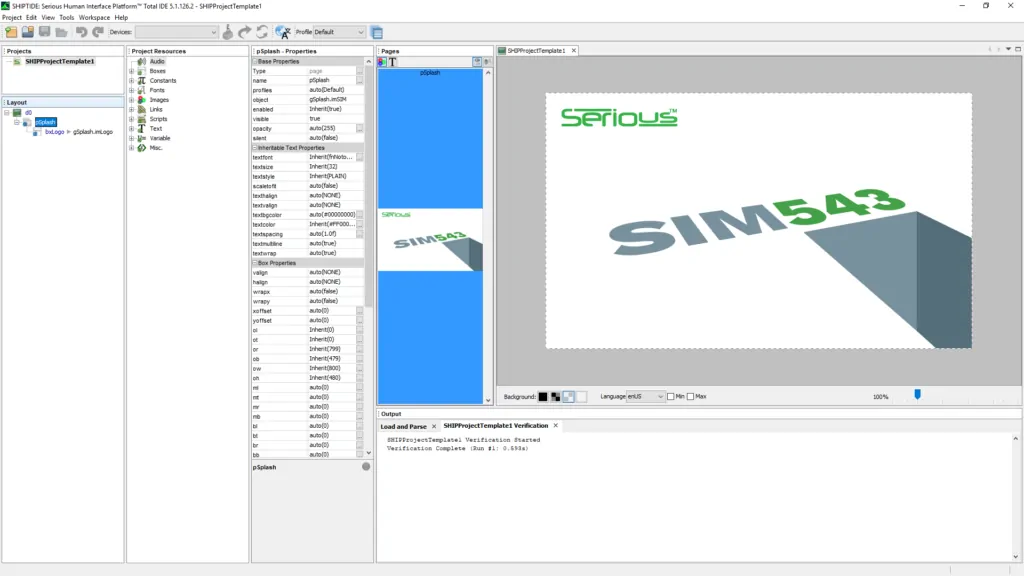

DEVELOPMENT TOOLS AND SOFTWARE
- Pixel accurate page layout
- Built-in media support: jpg, png, bmp, tif, ttf, wav, and more
- Windows 10 based
- Licensed with every SIM
- Runs GUIs generated by SHIPTide
- Handles graphics, touch, communications, events, and more
SIMx52 and SIMx62 (“Generation 5”) HMI modules are supported by SHIP v5.2.
Learn More about the Serious Human Interface™ Platform (SHIP)
DEVELOPMENT KITS
The SIMx52 and SIMx62 Development Kits
SIMx52 and SIMx62 HMI modules are supported by SIM Dev Kit Accessory (SIMDKA) packages. Just purchase separately the individual HMI module of your choice, and add the appropriate DKA as a build-your-own dev kit.
SIMx52/x52 Dev Kit Accessories
