SIMx52 HMI Module Families

SIMx52 HMI Module Families

Cost-Effective Flexibility for your Embedded HMI Project

  • Powered by the Renesas RZ/A1L MPU with a 400MHz Cortex-A9 core for cost-effective and modern UX performance
  • No-cost built-in SHIPEngine firmware — no drivers or embedded coding required
  • No-cost SHIPTide GUI development tools ensure rapid time to a moddern, production-ready GUI with absolute minimal coding

The Core of your Next Embedded System Innovation

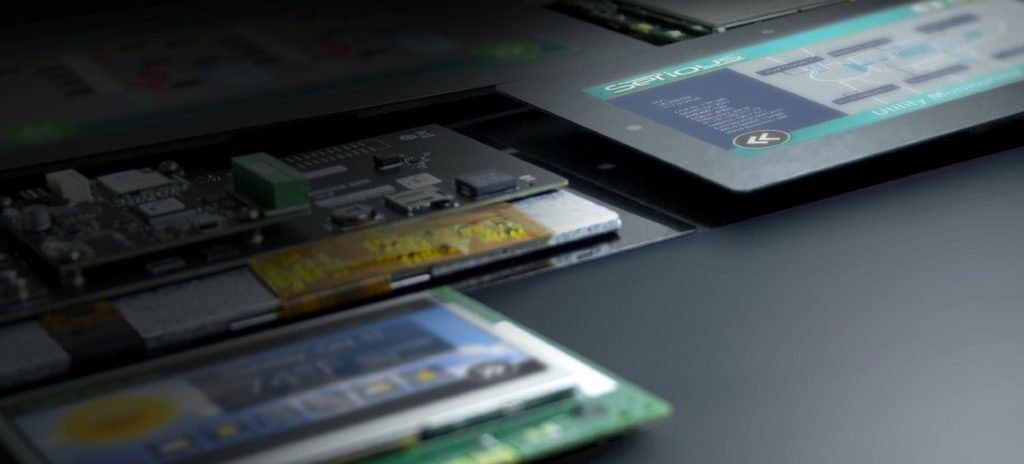

Ranging from small 3.5″ to bold and modern 7″, the SIMx52 HMI module families have many LCD options to meet your embedded HMI needs, including sunlight readable, extended temperature range, cap/resistive/no-touch, and more.Check out this short video teardown introduction of the SIMx52:
Play Video

Aside from LCD size and capability options, the SIMx52 family has several different feature options (“variants”) you can choose from based on your feature and cost needs:

Processor and Memory

  • Renesas RZ/A1L 400MHz ARM Cortex A9 MCU
  • 32MB SDRAM with 128MB QSPI NAND Flash storage for program, non-volatile data, and files system storage
  • μSDCard socket for (user supplied) memory cards for file system expansion and firmware/GUI updates

Integrated graphics/touch and audio I/O:

  • Integrated LCD with optional touch controller and ambient light sensor for high brightness LCD options
  • Integrated audio 3W speaker codec/amplifier outputs and external codec/amplifier support

Numerous communications ports

  • USB 2.0 high speed 480mbps host port A connector
  • USB 2.0 high speed 480mbps device port Micro B connector
  • RS422/485 port with selectable duplex and termination
  • 3.3V UART with transmit control (separate from RS485 port)

Simple in-chassis connectivity

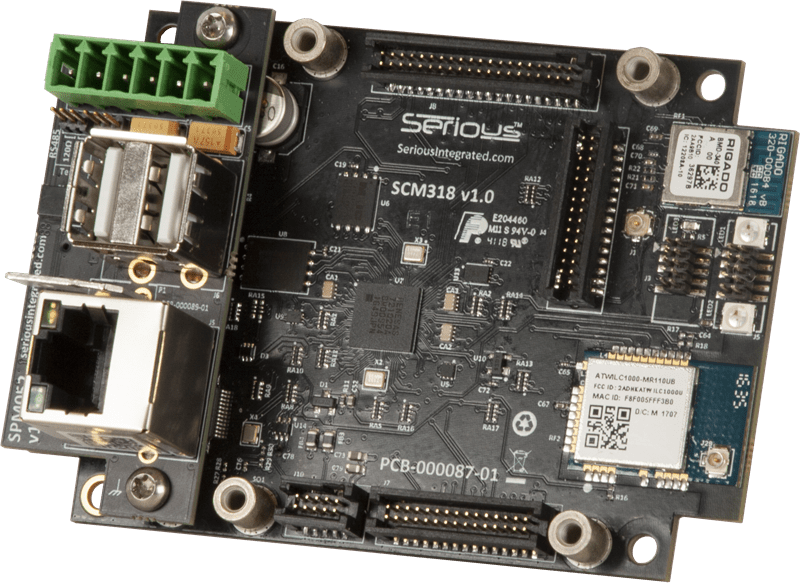

  • Direct Dock to Generation 5 Serious Comms/Control Modules (SCMs, e.g. SCM318)
  • 16-pin JST ZPD series wire-to-board connector (RS485/UART, Power, RESET#)
  • 6-pin industrial 3.5mm pluggable connector (RS485, Power)
  • 3-pin speaker connector

Wide Operating Range

  • 10.8-35VDC wide range power supply input
  • -40 to +85C operating temperature range components (further limited by LCD option)

Explore the SIMx52 features below, and compare with the SIMx62 families for higher-performance options.

SIMx62/SIMx52 Comparison Table

GROUP SIMx62* SIMx52*

FAMILY

SIM862
NEW!

SIM562
NEW!

SIM362
NEW!

SIM552
NEW!

SIM352
NEW!

SIM252
NEW!

SIM152
NEW!

LCD Parameters
Size 10.1″ 7″ 5″ 7″ 5″ 4.3″ 3.5″
Pixels (w x h)1200×800800×480800×480800×480800×480480×272320×240
Touch OptionsC,R,NC,R,N
Operating Voltage
Vin DC Min (V)10.8010.80
Vin DC Max (V)35.0035.00
MCU
FamilyRZ/G1ERZ/A1L
Core TypeCortex A7Cortex A9
MHz1000400
Cores21
Storage
SPI NOR Flash (MB)44
QSPI NAND Flash (MB)128
e.MMC (GB)4
SDCard SocketYY
RAM TypeDDR3SDRAM
RAM Size (MB)12832
USB
Host Speed (Mbps)480480
Device Speed (Mbps)480480
Peripherals
Battery Backed RTCCYY
Ambient Light SensorYY
User LED
UART11
RS485 I/O11
Audio
Output
I2S
Line Out
3W Amp
I2S
Line Out
3W Amp

*some product variants are feature-reduced from these family maximums; see the specific family/variant tables for details.

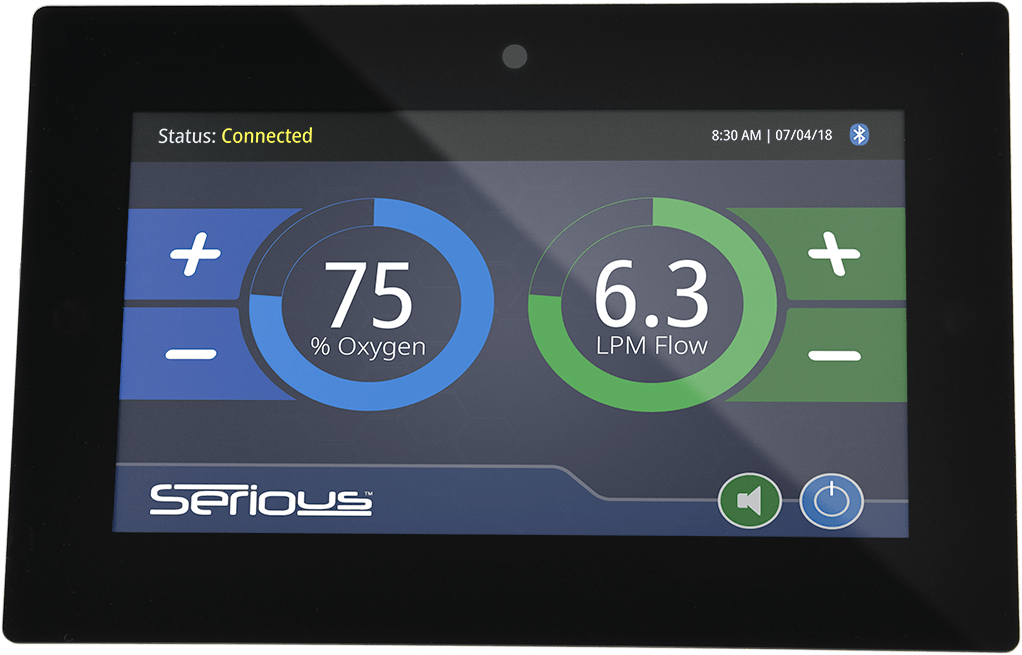

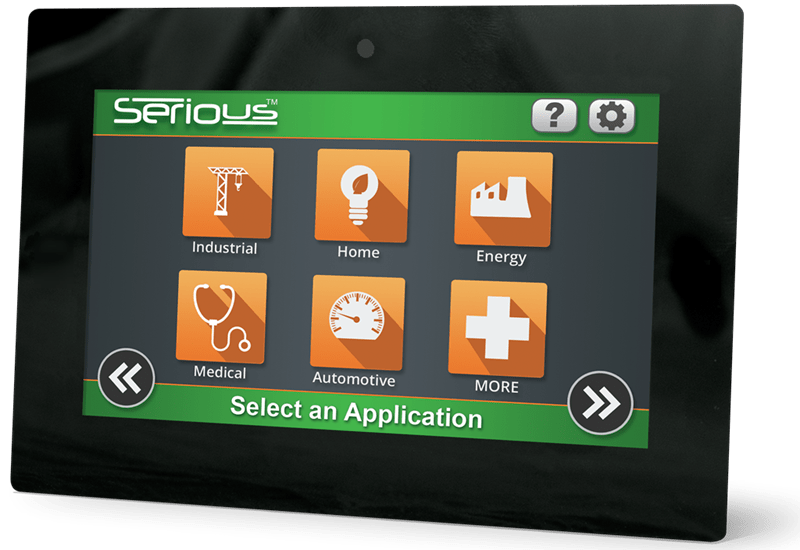

SIM552 7″ HMI Modules

The SIM552 features a big 7″ 800×480 color LCD powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core. Utilizing our proprietary SHIPEngine firmware, the SIM552 delivers a large array of options for front panel applications with industrial and commercial applications. Dive deeper into the SIM552

SIM352 5″ HMI Modules

The SIM352 features a premium, high resolution 5″ 800×480 color LCD powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core. Utilizing our proprietary SHIPEngine firmware, the SIM352 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package. Dive deeper into the SIM352

SIM252 4.3″ HMI Modules

The SIM252 features a compact 4.3″ 480×272 color LCD powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core. Utilizing our proprietary SHIPEngine firmware, the SIM252 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package. Dive deeper into the SIM252

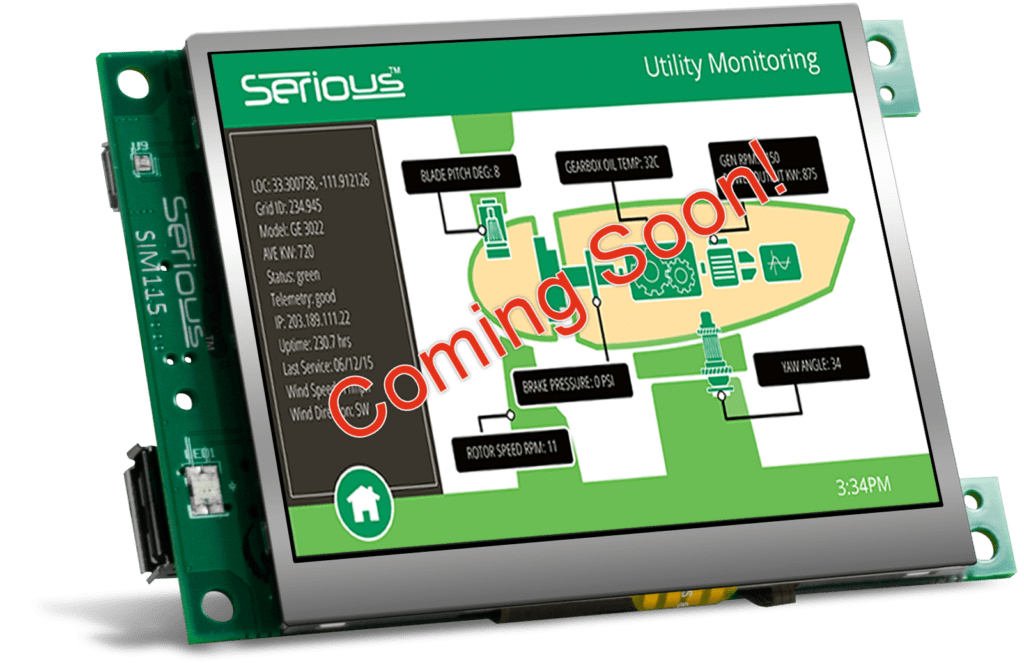

SIM152 3.5″ HMI Modules

The SIM152 features a small 3.5″ 320×240 color LCD — perfect for highly space constrained designs. Powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core, and equipped with our proprietary SHIPEngine firmware, the SIM152 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package.

Dive deeper into the SIM152
