What’s a SIM?
SIMs are intelligent Human Machine Interface (HMI) platforms embeddable in Original Equipment Manufacturers’ (OEMs’) products. The modules are capable of delivering modern, responsive, and elegant user experiences. Think of them like an out-of-the-box HMI peripheral to your system.
The latest “Generation 5” SIMs, including the cost-effective SIMx52 and high-performance SIMx62 series, have numerous family members spanning 3.5″ to 10.1″ LCDs. More than just a non-intelligent LCD, these SIMs integrate the LCD with a high-performance Renesas RZ-family MPU, graphical controller, LCD interface technology, touch sensing, and all the storage and processing necessary to deliver a rich user experience. The off-the-shelf Serious Human Interface™ Platform (SHIP) firmware engine, SHIPEngine, is preloaded to execute user interfaces developed in the SHIPTide GUI development tool.
SIMs can be used stand-alone in a system, connected either directly inside the system chassis to an OEM control subsystem or remotely (for example) over USB, UART or RS422/485. While primarily designed to deliver the Human Machine Interface (HMI), a SIM is capable of some measure of system control through its powerful built-in scripting language and operating environment. Two protocols are native in the modules: Modbus (Master/Slave, ASCII/RTU) and the more powerful SHIPBridge protocol for bidirectional data movement and firmware management.
Choosing the Right SIM for Your Application
There are many options, including features, LCD size, LCD features, and more.
- Use our handy guide to drill down and find out the SIM that is right for your application.
- Watch the videos here to help get a feel for which family might work for your product
SIMx52 Overview
SIMx62 Overview

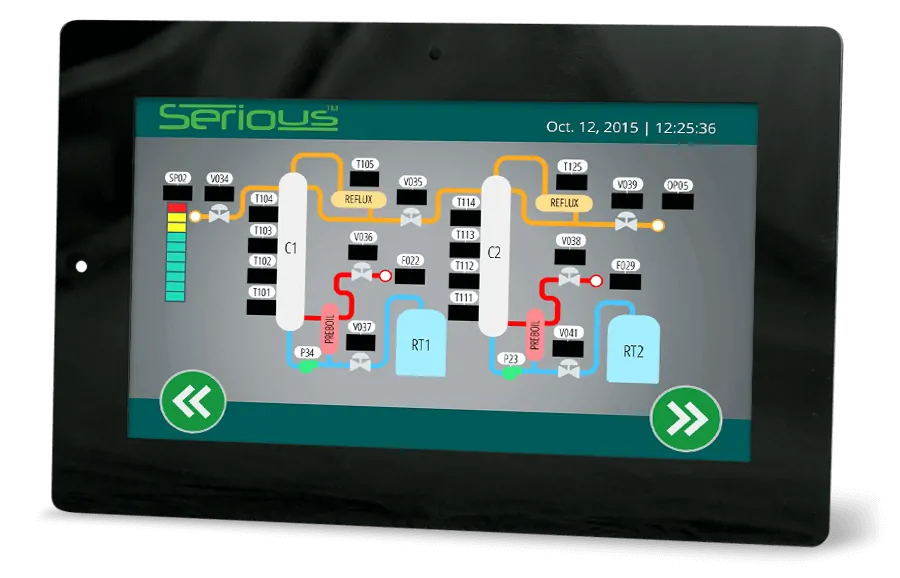

SIM862 10.1″ HMI Modules
The SIM862 features a big, bold 10.1″ high resolution wide-screen 1280×800 or 1024×600 color LCD powered by the Renesas RZ/G1E MPU with 1GHz Dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM862 delivers a large array of options for front panel applications with industrial, commercial and medical applications. Dive deeper into the SIM862SIM562 7″ HMI Modules

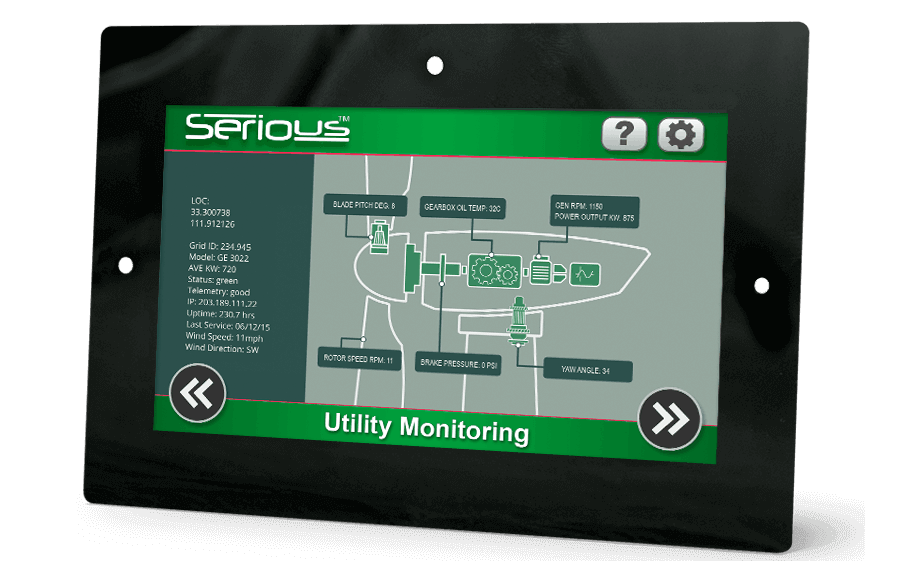

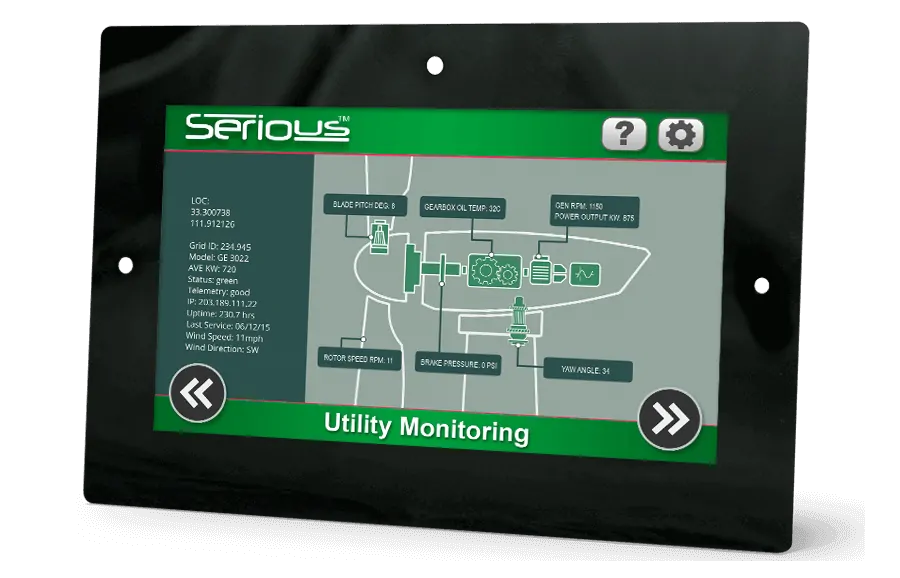

The SIM562 features a big 7″ 800×480 color LCD powered by the Renesas RZ/G1EL MPU with 1GHz Dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM562 delivers a large array of options for front panel applications with industrial, medical and commercial applications.
Dive deeper into the SIM562SIM552 7″ HMI Modules
The SIM552 features a big 7″ 800×480 color LCD powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core. Utilizing our proprietary SHIPEngine firmware, the SIM552 delivers a large array of options for front panel applications with industrial and commercial applications. Dive deeper into the SIM552SIM543 7″ HMI Modules
With a capacitive touch 7” 800×480 24-bit color LCD powered by a 240MHz Renesas Synergy™ S7G2 MCU, the SIM543 delivers an excellent HMI experience for your system. Utilizing our proprietary SHIPEngine firmware and the SHIPTide development tools, your industrial, commercial, or medical GUI can be developed and deployed quickly and easily. Dive deeper into the SIM543SIM362 5″ HMI Modules
The SIM362 features a premium, high resolution 5″ 800×480 color LCD powered by the Renesas RZ/G1E MPU with 1GHz dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM362 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package. Dive deeper into the SIM362SIM352 5″ HMI Modules
The SIM352 features a premium, high resolution 5″ 800×480 color LCD powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core. Utilizing our proprietary SHIPEngine firmware, the SIM352 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package. Dive deeper into the SIM352SIM252 4.3″ HMI Modules
The SIM252 features a compact 4.3″ 480×272 color LCD powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core. Utilizing our proprietary SHIPEngine firmware, the SIM252 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package. Dive deeper into the SIM252SIM231 4.3″ HMI Modules
With a cost-effective 4.3″ 480×272 LCD and powered by a 96MHz Renesas RX631 MCU with Serious Gatling™ Technology for rapid-fire 24-bit color delivery and ambient light sensing, the SIM231 can deliver an outstanding front control panel experience for your product.
Dive deeper into the SIM231
SIM152 4.3″ HMI Modules
The SIM152 features a small 3.5″ 320×240 color LCD — perfect for highly space constrained designs. Powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core, and equipped with our proprietary SHIPEngine firmware, the SIM152 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package.

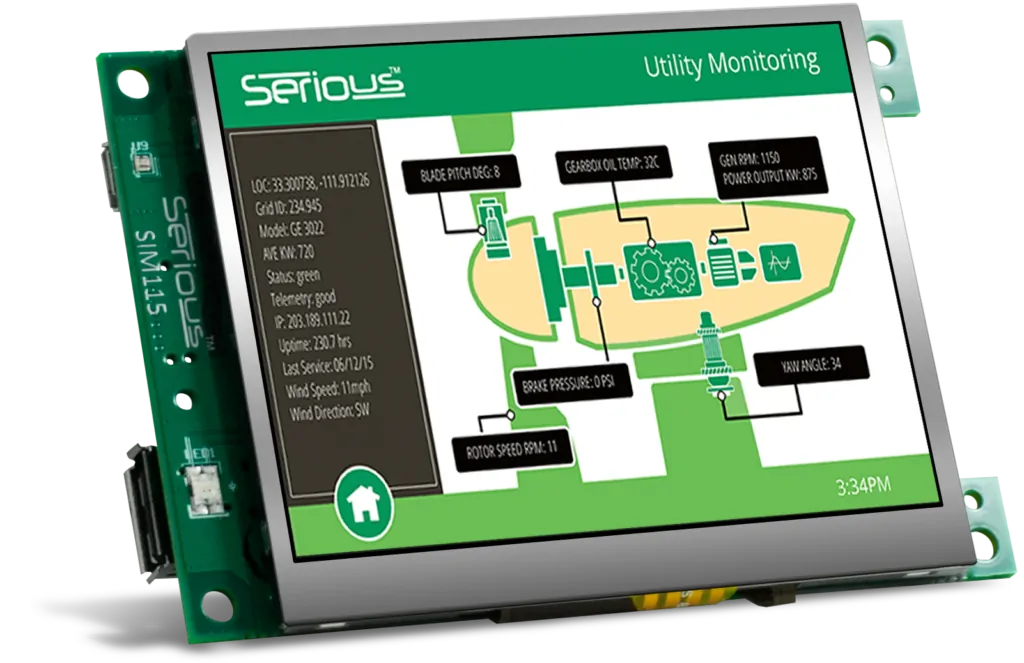

Dive deeper into the SIM152SIM115 3.5″ HMI Modules
The SIM152 features a small 3.5″ 320×240 color LCD — perfect for highly space constrained designs. Powered by the Renesas RZ/A1L MPU with a 400MHz Cortex A9 core, and equipped with our proprietary SHIPEngine firmware, the SIM152 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package.
Dive deeper into the SIM112
Feature | SIM862 | SIM562 | SIM552 | SIM543* | SIM362 | SIM352 | SIM252 | SIM231* | SIM152 | SIM115* | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCD Parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Size (inches) | 10.1 | 7 | 7 | 7 | 5 | 5 | 4.3 | 4.3 | 3.5 | 3.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels (w x h) | 1200×800 | 800×480 | 800×480 | 800×480 | 800×480 | 800×480 | 480×272 | 480×272 | 320×240 | 320×240 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Options | C,R,N | C,R,N | C,R,N | C | C,R,N | C,R,N | C, R, N | R,N | C, R, N | R,N | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vin DC Min (V) | 10.8 | 10.8 | 10.8 | 4.5 | 10.8 | 10.8 | 10.8 | 4.5 | 10.8 | 4.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vin DC Max (V) | 35 | 35 | 35 | 5.25 | 35 | 35 | 35 | 5.25 | 35 | 5.25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Family | RZ/G1E | RZ/G1E | RZ/A1L | S7G2 | RZ/G1E | RZ/A1L | RZ/A1L | RX631 | RZ/A1L | RX631 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Core Type | Cortex A7 | Cortex A7 | Cortex A9 | Cortex M4 | Cortex A7 | Cortex A9 | Cortex A9 | RX631 | Cortex A9 | RX631 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MHz | 1000 | 1000 | 400 | 240 | 1000 | 400 | 400 | 96 | 400 | 96 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cores | 2 | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SPI NOR Flash (MB) | 4 | 4 | 4 | 4 | 4 | 4 | 16 | 4 | 16 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QSPI NAND Flash (MB) | 128 | 128 | 128 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
e.MMC (GB) | 4 | 4 | 2 | 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDCard Socket | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Type | DDR3 | DDR3 | SDRAM | SDRAM | DDR3 | SDRAM | SDRAM | SDRAM | SDRAM | SDRAM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Size (MB) | 128 | 128 | 32 | 32 | 128 | 32 | 32 | 16 | 32 | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM Speed (MHz) | 1333 | 1333 | 66 | 120 | 1333 | 66 | 66 | 48 | 66 | 48 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Host Speed (Mbps) | 480 | 480 | 480 | 12 | 480 | 480 | 480 | 12 | 480 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Speed (Mbps) | 480 | 480 | 480 | 480 | 480 | 480 | 480 | 12 | 480 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
UART | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 Transciever | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripherals | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Battery Backed RTCC | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ambient Light Sensor | See LCD | See LCD | See LCD | ✓ | See LCD | See LCD | See LCD | ✓ | See LCD | ✓ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User LED | RGB | RG | RG | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | I2S Line Out 3W Amp |
I2S Line Out 3W Amp |
I2S Line Out 3W Amp |
I2S Line Out 3W Amp |
I2S Line Out 3W Amp |
I2S Line Out 3W Amp |
DAC Piezo |
I2S Line Out 3W Amp |
DAC Piezo |
DAC Piezo |
