SIM535 7″ HMI

SIM535 is End of Life – see PCN-20080005.

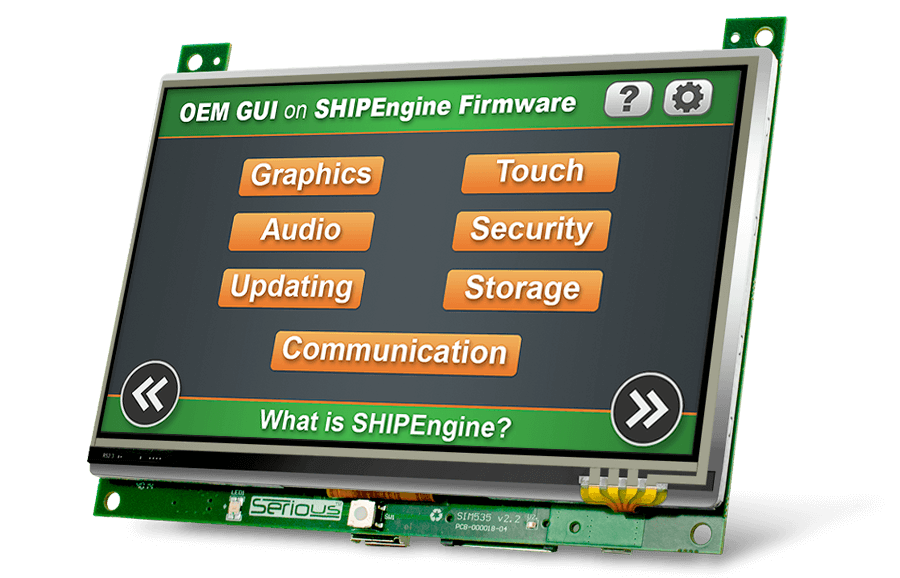

The SIM535 features a 7″ wide format 800×480 LCD color TFT screen powered by the Renesas SH2 MPU. SIM535 also supports an extended -20 to +70C operating range, with various brightness, touch, and backlight longevity options available.

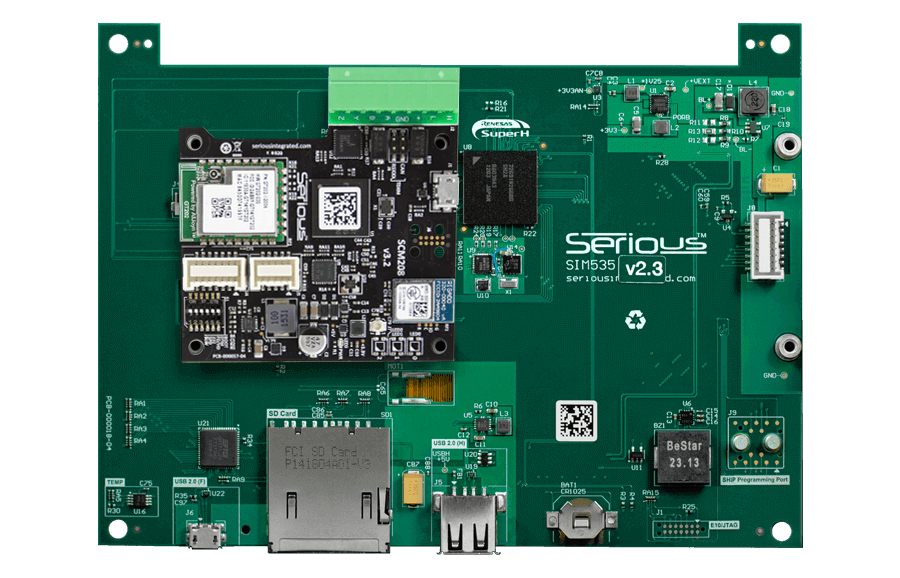

Standard high speed UART, SPI, and power connectivity is provided by a 16-pin Power/Communications connector — perfect for simple wire-harness attachment to existing systems. A low profile, high-density module-to-module 60-pin expansion connector supports easy daughter card development for proprietary system integration. Or, choose one of the Serious Communications Modules to provide the communications flexibility you need, including industrial, IT, and IoT connectivity.

Explore these options compared to the SIM535:

SIM552 for higher performance in a more cost effective, modern product line
SIM562 for higher performance, including video playback
SIM252 for more performance in a more cost effective, modern product line with a compact 4.3″ LCD
SIM352 for more performance in a compact, high resolution 5″ form factor
SIM862 for higher performance, including video playback, with a big, bold 10.1″ LCD

FEATURES & VARIANTS

7.0” WVGA 800×480 color TFT display

Various touch panel, backlight, and color depth options
Ambient Light Sensing

266MHz 32-bit Renesas SH7269 MPU

5MB On-Chip RAM
2D Graphics Controller/Accelerator

On Module Memory

32MB SDRAM
2 or 4GB eMMC FLASH
8MB boot Serial FLASH
2Kbit EEPROM

Extensive I/O

SDCard socket
USB 2.0 HS Embedded Host Connector
USB 2.0 HS Device Connector
Serious 16-pin Power/Communications Connector
SHIP Programming Port
60-pin serial expansion connector

Wide Operating Range

-20 to 70°C extended operating temperature
6 to 5.50 VDC Input Power

SIM535

A00

A01

A02

A03

A04

Processor & Memory

Processor

266MHz Renesas SH7269 SH2 MPU

MCU RAM (kB)

2560

DRAM (MB)

e.MMC (GB)

LCD & Touch

Touch Types

Resistive

None

Resistive

None

Ambient Light Sensing

●

Connectivity

16-Pin Serial/Power Expansion

●

60-Pin SCM Expansion

●

USB2.0 HS Device Logic

●

USB2.0 FS Device Micro B Connector

●

USB2.0 FS Host with A Connector

●

Peripherals

Front LED & Button

●

Piezo Sounder

●

RTCC w/Battery Backup

●

10-bit DAC Audio Output

●

LCD OPTIONS

See LCD Options for definitions and codes. Additional options may be available; contact your local Serious representative for details.

Resistive Touch Options

LCD Option	R55ALL	R22ALL
Size (inches)	7	7
Pixels (w x h)	800×480	800×480
Touch	Resistive	Resistive
Cover Glass	1mm+	1mm+
Brightness (typ NITs)	500+	200+
Backlight Life (typ hrs)	50,000	20,000
Viewing Technology	Landscape	Landscape
Color Depth (bits)	24	24
Operating Temp	-20/+70C	-20/+70C
Ambient Sensor	Variant Dependent

Non-Touch Options

LCD Option	N55ALL	N22ALL
Size (inches)	7	7
Pixels (w x h)	800×480	800×480
Touch	None	None
Cover Glass	None	None
Brightness (typ NITs)	500+	200+
Backlight Life (typ hrs)	50,000	20,000
Viewing Technology	Landscape	Landscape
Color Depth (bits)	24	24
Operating Temp	-20/+70C	-20/+70C
Ambient Sensor	Variant Dependent

DEVELOPMENT TOOLS AND SOFTWARE

SHIPTide GUI Development IDE

Pixel accurate page layout
Built-in media support: jpg, png, bmp, tif, ttf, wav, and more
Windows 10 based

SHIPEngine Runtime GUI Engine

Licensed with every SIM
Runs GUIs generated by SHIPTide
Handles graphics, touch, communications, events, and more

Older HMI modules, including SIM115, SIM225, SIM231, SIM243, SIM535, SIM543 are all supported by SHIP v5.1. For the extra features in SHIP v5.2 and onwards, choose a newer “Gen5” HMI Module, including the SIMx52 and SIMx62 families.

Learn More about the Serious Human Interface™ Platform (SHIP)

DEVELOPMENT KITS

This product is not recommended for new designs and development kits are no longer broadly available.

Contact your local Manufacturer’s Representative if you are an existing customer of this product and need an additional development kit for your team.

SHIPTide GUI Development IDE

Pixel accurate page layout
Built-in media support: jpg, png, bmp, tif, ttf, wav, and more
Windows tested

SHIPEngine Runtime GUI Engine

Licensed with every SIM
Runs GUIs generated by SHIPTide
Handles graphics, touch, communications, events, and more

Learn More

DEVELOPMENT RESOURCES

The Serious Documentation Zone has extensive SIM documentation, downloads, resources, training, and more.
