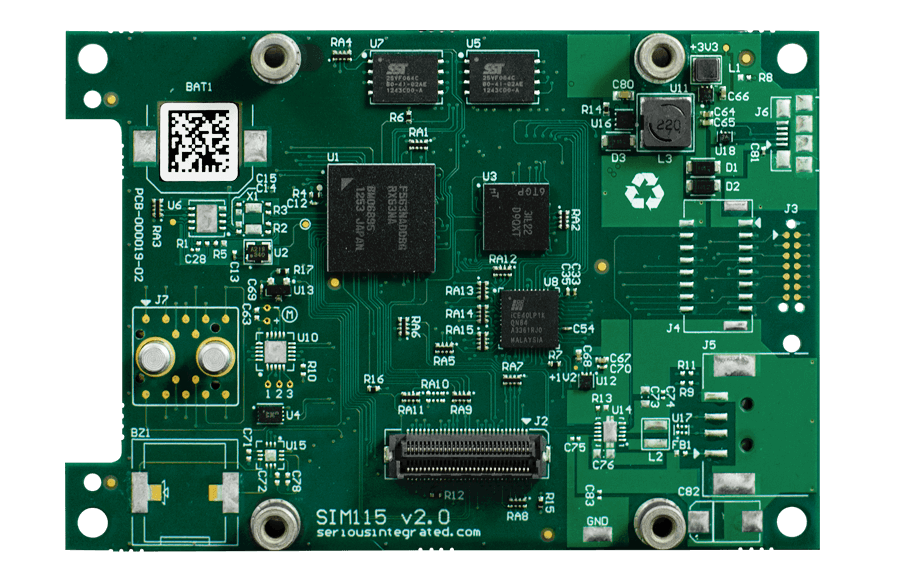

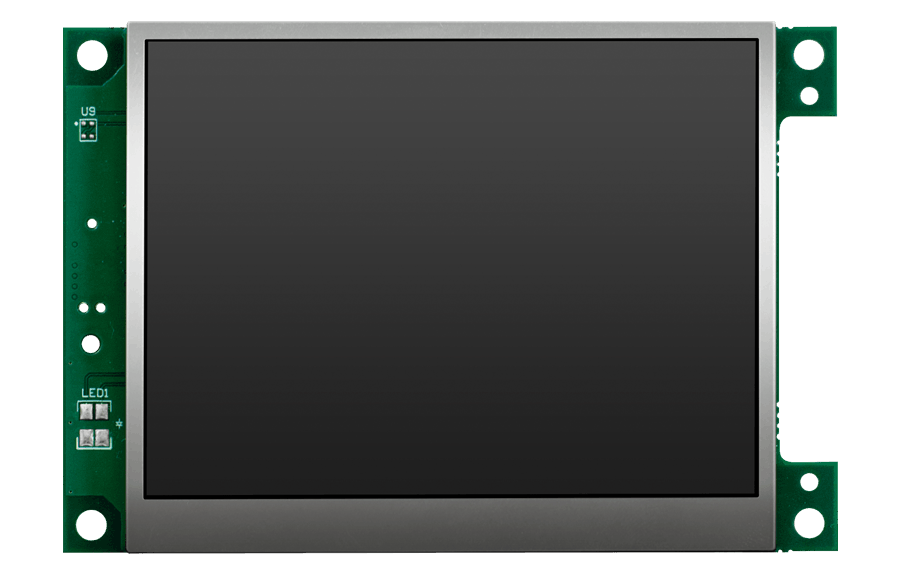

With a compact, bright 3.5″ 320×240 LCD screen and powered by a 96MHz Renesas RX631 MCU with Serious Gatling™ Technology for rapid-fire 24-bit color delivery and ambient light sensing, the SIM115 can deliver an outstanding front control panel experience for your product.
Standard high-speed UART, SPI, and power connectivity are provided by a 16-pin Power/Communications connector — perfect for simple wire-harness attachment to existing systems. A low-profile, high-density module-to-module 60-pin expansion connector supports easy daughter card development for proprietary system integration. Or, choose one of the Serious Communications Modules to provide the communications flexibility you need, including industrial, IT, and IoT connectivity.
SIM115 | A01 | A02 | A03 | A04 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor & Memory | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor | 96MHz Renesas RX631 MCU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCU Flash/RAM (kB) | 512/128 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DRAM (MB) | 16 | 16 | 8 | 8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SPI NOR Flash (MB) | 16 | 16 | 8 | 8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LCD & Touch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Touch Types | Resistive | None | Resistive | None | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ambient Light Sensing | ● | ● | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectivity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
16-Pin Serial/Power Expansion | ● | ● | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
60-Pin SCM Expansion | ● | ● | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB2.0 FS Device Logic | ● | ● | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB2.0 FS Device Micro B Connector | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB2.0 FS Host with A Connector | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Peripherals | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Front LED | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Piezo Sounder | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RTCC w/Battery Backup | ● | ● | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
10-bit DAC Audio Output | ● | ● |
See LCD Options for definitions and codes. Additional options may be available; contact your local Serious representative for details.
LCD Option | R45ALL |
Size (inches) | 3.5 |
Pixels (w x h) | 320×240 |
Touch | Resistive |
Cover Glass | 1mm+ |
Brightness (typ NITs) | 400+ |
Backlight Life (typ hrs) | 50,000 |
Viewing Technology | Landscape |
Color Depth (bits) | 24 |
Operating Temp | -20/+70C |
Ambient Sensor |
LCD Option | N55ALL |
Size (inches) | 3.5 |
Pixels (w x h) | 320×240 |
Touch | None |
Cover Glass | None |
Brightness (typ NITs) | 500+ |
Backlight Life (typ hrs) | 50,000 |
Viewing Technology | Landscape |
Color Depth (bits) | 24 |
Operating Temp | -20/+70C |
Ambient Sensor |
Older HMI modules, including SIM115, SIM225, SIM231, SIM243, SIM535, SIM543 are all supported by SHIP v5.1. For the extra features in SHIP v5.2 and onwards, choose a newer “Gen5” HMI Module, including the SIMx52 and SIMx62 families.
Learn More about the Serious Human Interface™ Platform (SHIP)
SIMx52 and SIMx62 HMI modules are supported by SIM Dev Kit Accessory (SIMDKA) packages. Just purchase separately the individual HMI module of your choice, and add the appropriate DKA as a build-your-own dev kit.
