SIM117 is a mature product — see the SCM318 for new designs.
SCM117-A03 an Extended Lifetime Product.

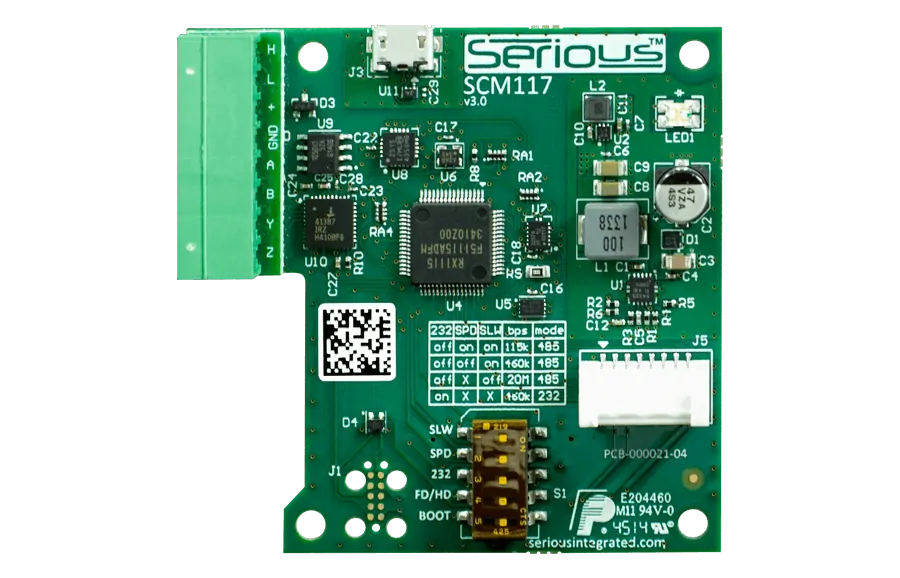

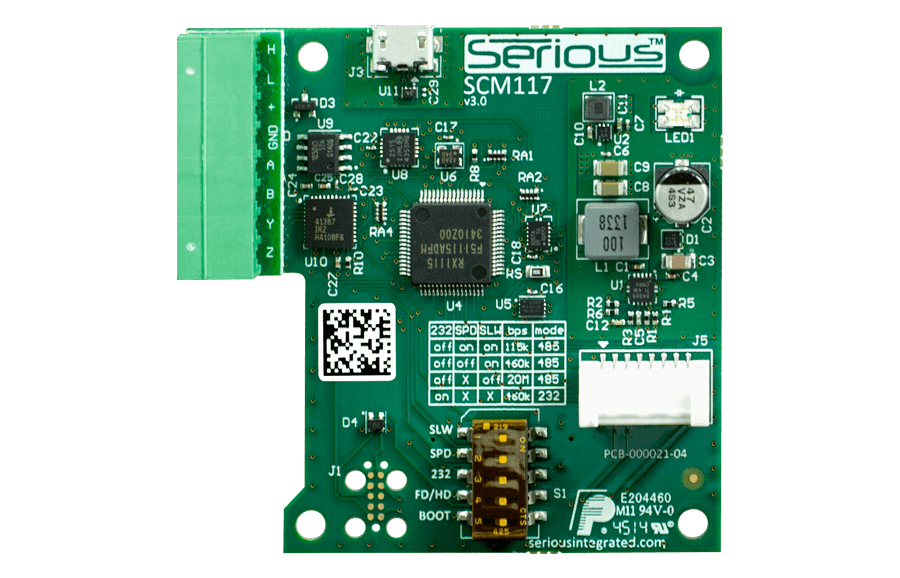

The 60-pin low profile board-to-board header docks into Generation 3 or 4 Serious Integrated HMI Module (SIMs), and the standard 3.5mm industrial screw-terminal-plug connector is a simple connection to power and the serial network.
SCM117 Variants | A00 | A03 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power & Environmental | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -40/+85C | -40/+85C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Voltage | 9 to 25VDC | 9 to 25VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor & Memory | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor | Renesas RX111 MCU | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Core(s) | RX100 | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MCU Flash/RAM (kB) | 128/16 | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communications | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232/RS422/485 From MCU | ● | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232/RS422/485 SIM Passthru | ● | ● | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
CAN | ● | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB2.0 HS Device Micro B | ● | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HMI Connectivity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.3V UART | ● | ● | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RESET#/SHDN# Control | ● | – | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
60-pin Gen3/4 HMI1 Docking Connector | ● | ● |
1For SIM115, SIM231, SIM535, SIM243, or SIM543 Serious Integrated HMI Modules (SIMs)
This product is not recommended for new designs and development kits are no longer broadly available.
Contact your local Manufacturer’s Representative if you are an existing customer of this product and need an additional development kit for your team.
