SIMx62 HMI Module Families

SIMx62 HMI Module Families

High Performance & Larger LCDs for Leading-Edge Embedded HMI Projects

  • Powered by the Renesas RZ/G1E MPU with 1GHz dual Cortex-A7 cores, SIMx62 delivers high UX performance, including video playback
  • No-cost built-in SHIPEngine firmware — no drivers or embedded coding required
  • No-cost SHIPTide GUI development tools ensure rapid time to a moddern, production-ready GUI with absolute minimal coding

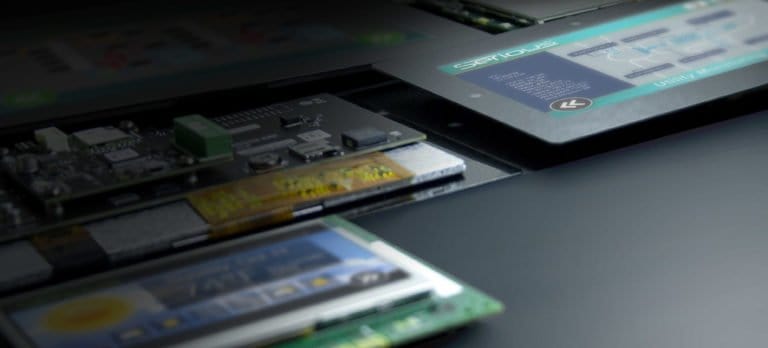

The Core of your Next Embedded System Innovation

Ranging from compact and modern 5″ to stunning 10.1″ and even larger, the SIMx62 HMI module families have many LCD options to meet your embedded HMI needs, including sunlight readable, extended temperature range, cap/resistive/no-touch, and more.

Check out this short video teardown introduction of the SIMx62:

Play Video

Aside from LCD size and capability options, the SIMx62 family has several different feature options (“variants”) you can choose from based on your feature and cost needs:

Processor and Memory

  • Renesas RZ/G1E Dual 1GHz ARM Cortex A7 MCU
  • 128MB DDR1333 DDR3 DRAM
  • 4GB e.MMC storage for program, non-volatile data, and files system storage
  • μSDCard socket for (user supplied) memory cards for file system expansion and firmware/GUI updates

Integrated graphics/touch and audio I/O:

  • Integrated LCD with optional touch controller and ambient light sensor for high brightness LCD options
  • Integrated audio codec/amplifier with line/headphone, headphone detect, and 3W speaker outputs
  • External codec/amplifier support

Numerous communications ports

  • USB 2.0 high speed 480mbps host port A connector
  • USB 2.0 high speed 480mbps device port Micro B connector
  • RS422/485 port with selectable duplex and termination
  • 3.3V UART with transmit control (separate from RS485 port)

Simple in-chassis connectivity

  • Direct Dock to Generation 5 Serious Comms/Control Modules (SCMs, e.g. SCM318)
  • 16-pin JST ZPD series wire-to-board connector (RS485/UART, Power, RESET#)
  • 6-pin industrial 3.5mm pluggable connector (RS485, Power)
  • 4-pin audio headphone/line out connector and 3-pin speaker connector

Wide Operating Range

  • 10.8-35VDC wide range power supply input
  • -40 to +85C operating temperature range components (further limited by LCD option)

Explore the SIMx62 features below, and compare with the SIMx52 families for higher-performance options.

SIMx62/SIMx52 Comparison Table

GROUP SIMx62* SIMx52*

FAMILY

SIM862
NEW!

SIM562
NEW!

SIM362
NEW!

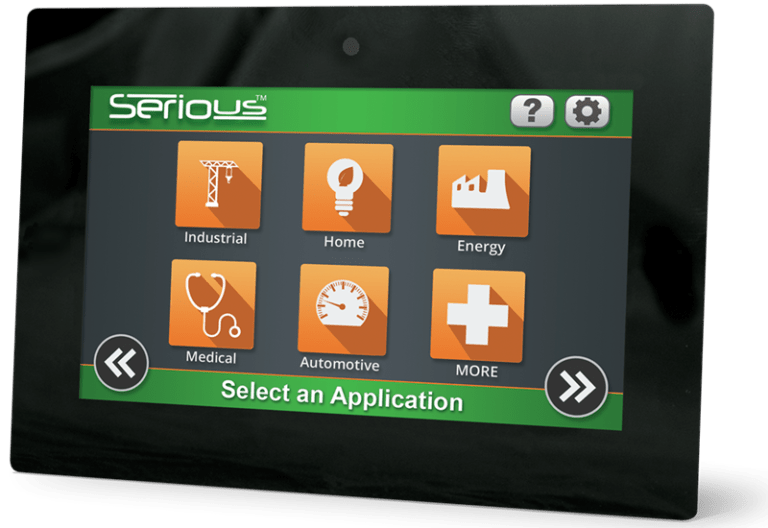

SIM552
NEW!

SIM352
NEW!

SIM252
NEW!

SIM152
NEW!

LCD Parameters
Size 10.1″ 7″ 5″ 7″ 5″ 4.3″ 3.5″
Pixels (w x h)1200×800800×480800×480800×480800×480480×272320×240
Touch OptionsC,R,NC,R,N
Operating Voltage
Vin DC Min (V)10.8010.80
Vin DC Max (V)35.0035.00
MCU
FamilyRZ/G1ERZ/A1L
Core TypeCortex A7Cortex A9
MHz1000400
Cores21
Storage
SPI NOR Flash (MB)44
QSPI NAND Flash (MB)128
e.MMC (GB)4
SDCard SocketYY
RAM TypeDDR3SDRAM
RAM Size (MB)12832
USB
Host Speed (Mbps)480480
Device Speed (Mbps)480480
Peripherals
Battery Backed RTCCYY
Ambient Light SensorYY
User LED
UART11
RS485 I/O11
Audio
Output
I2S
Line Out
3W Amp
I2S
Line Out
3W Amp

*some product variants are feature-reduced from these family maximums; see the specific family/variant tables for details.

SIM862 10.1″ HMI Modules

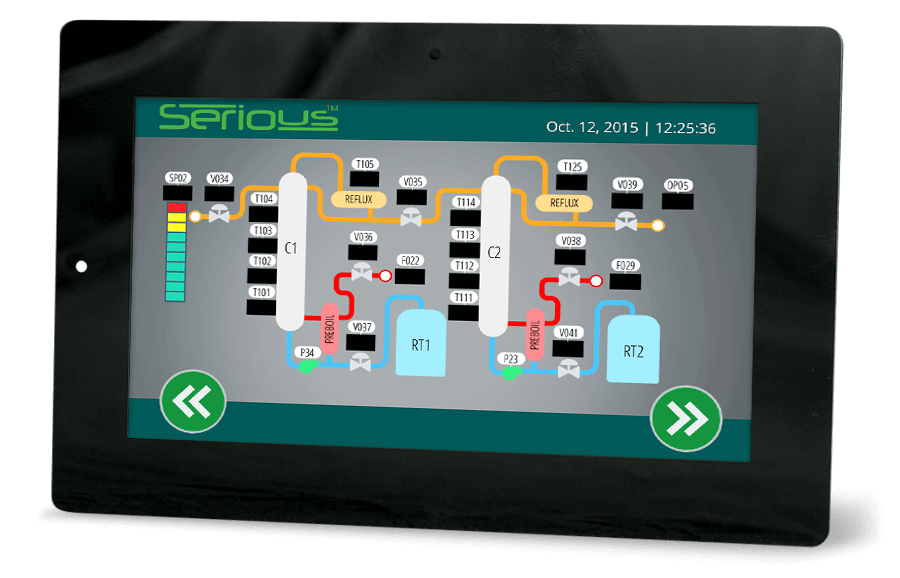

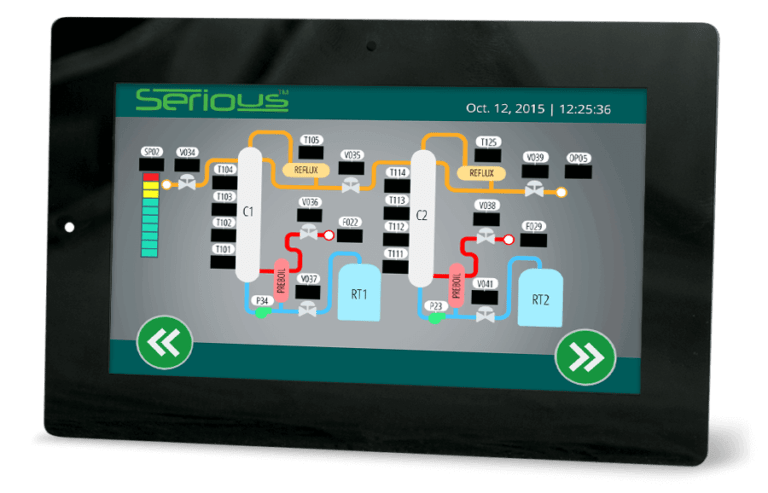

The SIM862 features a big, bold 10.1″ high resolution wide-screen 1024×800 color LCD powered by the Renesas RZ/G1E MPU with 1GHz Dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM862 delivers a large array of options for front panel applications with industrial, commercial and medical applications.

Dive deeper into the SIM862

SIM562 7″ HMI Modules

The SIM562 features a big 7″ 800×480 color LCD powered by the Renesas RZ/G1EL MPU with 1GHz Dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM562 delivers a large array of options for front panel applications with industrial, medical and commercial applications.

Dive deeper into the SIM562

SIM362 5″ HMI Modules

The SIM362 features a premium, high resolution 5″ 800×480 color LCD powered by the Renesas RZ/G1E MPU with 1GHz dual Cortex A7 cores. Utilizing our proprietary SHIPEngine firmware, the SIM362 delivers a large array of options for front panel applications with industrial, commercial, and medical applications in a small package.

Dive deeper into the SIM362
