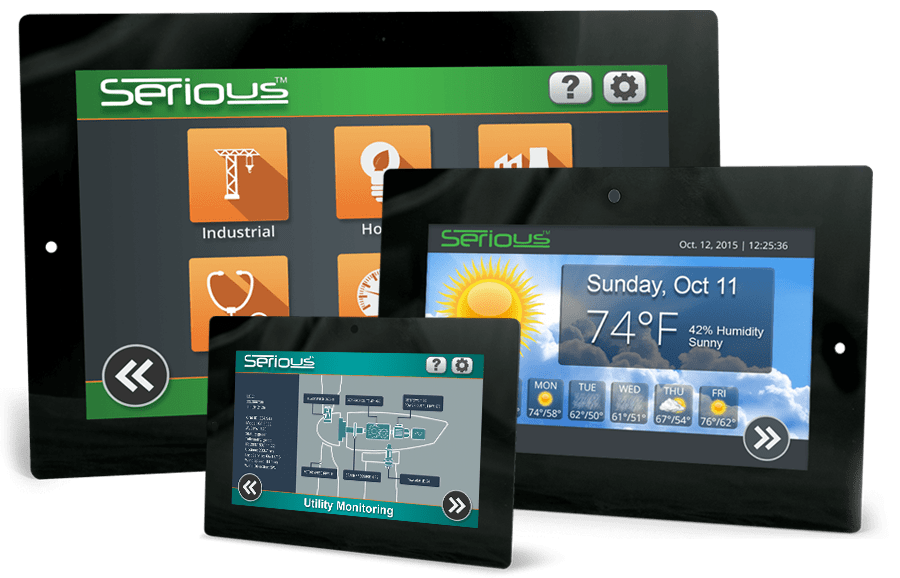

10.1" LCD Display Module

  • 1024x600 Color TFT LCD
  • Renesas RZ/A1H 400MHz 32-bit ARM Cortex-A9 Core
  • 10MB On-Chip RAM, OpenVG1.1 2D graphics accelerator
  • 32MB DRAM, Up to 4GB e.MMC FLASH, MicroSD Card Socket
  • Extended -30 to 85°C operating temperature available
  • SHIP GUI Development Tools available at no cost

7" 24-bit Color TFT Display Module

  • 800x640 Color TFT LCD
  • Renesas RZ/A1H 400MHz 32-bit ARM Cortex-A9 Core
  • 10MB On-Chip RAM, OpenVG1.1 2D graphics accelerator
  • 32MB DRAM, Up to 4GB e.MMC FLASH, MicroSD Card Socket
  • Extended -20 to 70°C operating temperature available
  • SHIP GUI Development Tools available at no cost

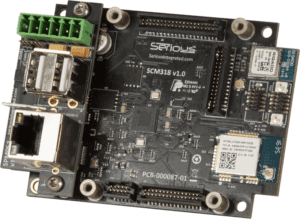

Power/Communications Module

  • Can connectivity with MCU-based CAN Controller
  • Qualcomm QCA4002 2.4GHz with external antenna support
  • Bluetooth Smart with NFC™-A Tag Touch-to-Pair
  • Directly docks into Gen3 & 4 SIMs
  • Renesas Synergy MCU for Comms Management
  • 9-25VDC input powers SCM + most SIMs
  • -40 to +85°C extended operating temperature

Professional and Affordable 4.3" GUI Performance

  • 480x272 Color TFT LCD
  • Renesas Synergy™ S7G2 MCU
  • 240MHz 32-bit ARM Cortex-M4 Core
  • 3MB FLASH, 640kB RAM
  • LCD Controller with 2D Drawing Engine
  • Up to 16MB DRAM, Up to 32MB Serial FLASH
  • Extended -20 to 70°C operating temperature available
  • SHIP GUI Development Tools available at no cost
With the Serious Human Interface™ Platform, you can build your first GUI, download it to hardware, and see it run in less than 60 seconds.

Intelligent 7.0" WVGA 800x480 Display Module

  • 24-bit Color TFT LCD
  • Numerous LCD touch and brightness options
  • 266MHz Renesas MCU; up to 4GB FLASH, SD Card, 32MB DRAM
  • Extensive I/O; -20 to 70°C Operation
  • SHIP GUI Development Tools available at no cost

Intelligent 4.3″ WQVGA 480×272 Display Module

  • 24-bit Multi-Viewing Angle TFT LCD with Serious Gatling™ Technology
  • Numerous touch and backlight options; ambient light sensing
  • 100MHz Renesas RX63x MCU; up to 16MB FLASH, 16MB DRAM
  • Extensive I/O; -20 to 70°C Operation
  • SHIP GUI Development Tools available at no cost

Power/Communications Module

  • Add WiFi, Bluetooth, RS232/485, CAN and GPIO to your system
  • Directly docks into Gen3 & 4 SIMs
  • Renesas RX113 32-bit MCU for your protocol stacks
  • 9-25VDC input powers SCM + most SIMs
  • Pre-ported Micriµm software stacks
